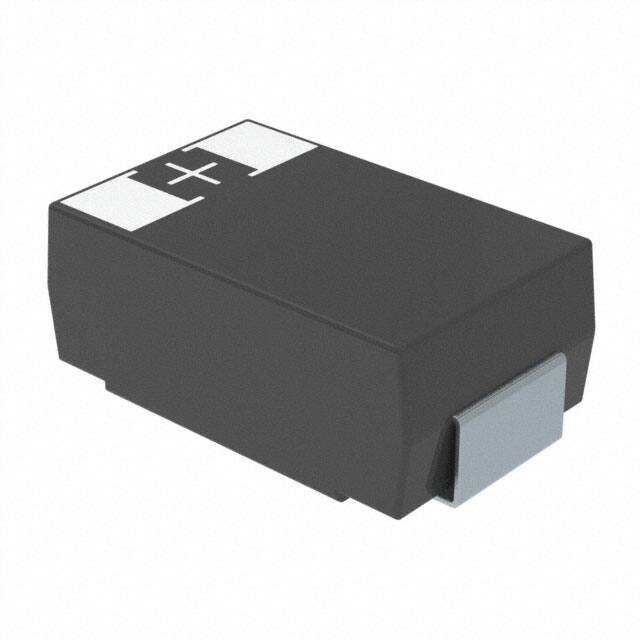

PANASONIC 20TDC100MYF

Manufacturer No:

20TDC100MYF

Manufacturer:

PANASONIC

Package:

, 2917

Description:

Tantalum Capacitor, Tantalum (solid Polymer),

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20TDC100MYF information

PANASONIC 20TDC100MYF technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 20TDC100MYF.

Type
Parameter

Part Life Cycle Code
Active

Ihs Manufacturer
PANASONIC CORP

Package Description
, 2917

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8532.21.00.50

Factory Lead Time
22 Weeks

Samacsys Manufacturer
Panasonic

Additional Feature
ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ AND 105CEL

Capacitance
100 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (SOLID POLYMER)

ESR
55 mΩ

Height
2.8 mm

Leakage Current
0.2 mA

Length
7.3 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
20%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Style
SMT

Packing Method
TR, EMBOSSED, 13 INCH

Polarity
POLARIZED

Rated (DC) Voltage (URdc)
20 V

Ripple Current
1700 mA

Size Code
2917

Surface Mount
YES

Tan Delta
0.1

Terminal Shape
J BEND

Width
4.3 mm

Download datasheets and manufacturer documentation for PANASONIC 20TDC100MYF.

Datasheets:

PANA-S-A0020739491-1.pdf

20TDC100MYF Overview

ESRs (Equivalent Series Resistances) ought to be kept at 55mOhm @ 100kHz for high efficiency.This device operates with a capacitance of 100?F.There is a voltage rating of -55°C~125°Cv - Rated AC.Voltage is rated at 20V which allows for high efficiency.In the seated position, it has a maximum height of 0.118 3.00mm°C, so it is stable under all conditions.

20TDC100MYF Features

a 55mOhm @ 100kHz ESR (Equivalent Series Resistance)
with a capacitance of 100?F
an AC voltage of -55°C~125°C
the voltage rating of 20V

20TDC100MYF Applications

There are a lot of Panasonic Electronic Components
20TDC100MYF applications of tantalum polymer capacitors.

Smart phone
Tablets
Notebook
LCD TV
Power supplies
