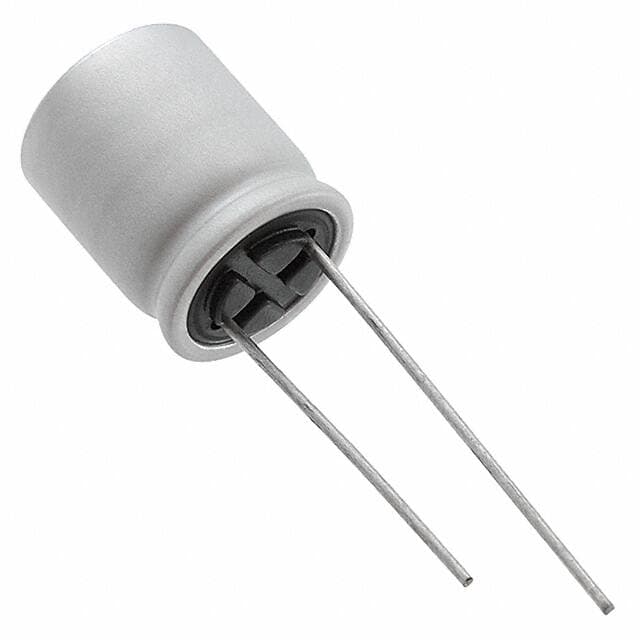

PANASONIC 20SEP150M+T

Manufacturer No:

20SEP150M+T

Manufacturer:

PANASONIC

Package:

Radial, Can

Description:

150?F ±20% Radial, Can 0.512 13.00mm Cut Tape (CT) 20mOhm OS-CON?, SEP Through Hole Polymer General Purpose

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20SEP150M+T information

PANASONIC 20SEP150M+T technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 20SEP150M+T.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
13

Operating Temperature
-55°C~105°C

Packaging
Cut Tape (CT)

Series
OS-CON?, SEP

Published
2012

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Type
Polymer

Applications
General Purpose

Capacitance
150?F

Voltage - Rated DC
20V

Lead Pitch
5mm

ESR (Equivalent Series Resistance)
20mOhm

Polarity
Polar

Lead Diameter
600 ?m

Voltage
20V

Lifetime @ Temp
3000 Hrs @ 105°C

Leakage Current
600?A

Ripple Current
4.32A

Life (Hours)
3000 hours

Tan Delta
0.15

Ripple Current @ Low Frequency
216mA @ 120Hz

Ripple Current @ High Frequency
4.32A @ 100kHz

Dissipation Factor
15 %

Diameter
10mm

Height Seated (Max)
0.512 13.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for PANASONIC 20SEP150M+T.

PCN Packaging:

panasonicelectroniccomponents-6svp820m-pcnpackaging-6375.pdf

20SEP150M+T Overview

Systems need 4.32A @ 100kHz ripple current at high frequencies in order to function.A value of 20mOhm is assigned to the electrical device's ESR (Equivalent Series Resistance).The 13 pin remains in place.Providing a ripple current at low frequency is necessary for 216mA @ 120Hz to function properly.Dissipation factor of 15 % is important to note for the part.A stable operation requires an operating temperature of -55°C~105°C.

20SEP150M+T Features

4.32A @ 100kHz ripple current on a high frequency
a 20mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C

20SEP150M+T Applications

There are a lot of Panasonic Electronic Components
20SEP150M+T applications of aluminum polymer capacitors.

LED driver power supplies
Phone chargers
Motherboards
Servers and adapters (laptop power supplies)
Medical equipment
Switching Power Supply and DC/DC Converter.
Buck up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
