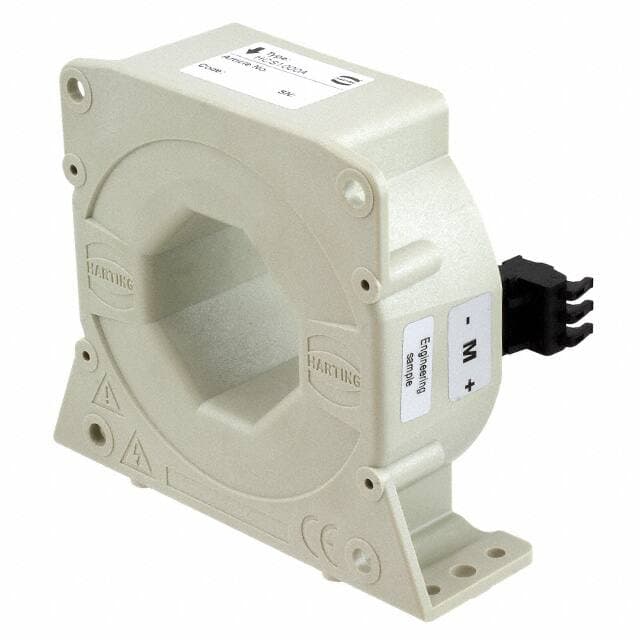

HARTING 20311000101

Manufacturer No:

20311000101

Manufacturer:

HARTING

Package:

Module, Single Pass Through

Description:

Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C 15V~24V 100kHz 1000A Accuracy-±0.4% Linearity-±0.1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20311000101 information

HARTING 20311000101 technical specifications, attributes, parameters and parts with similar specifications to HARTING 20311000101.

Type
Parameter

Mount
Panel

Mounting Type
Panel Mount

Package / Case
Module, Single Pass Through

Weight
690.82118g

Operating Temperature
-40°C~85°C

Packaging
Bulk

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Supply
15V~24V

Current Rating
1kA

Frequency
100kHz

Output
Ratiometric, Voltage

Operating Supply Voltage
24V

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
28mA

Accuracy
±0.4%

Response Time
1?s

Wire/Cable Diameter
38.5 mm

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.1%

Sensing Method
Hall Effect

For Measuring
AC/DC

Height
95mm

Length
110mm

Width
34mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for HARTING 20311000101.

ConflictMineralStatement:

hartingelektronik-09454521910-conflictmineralstatement-8953.pdf

20311000101 Overview

A Module, Single Pass Through package is used to protect the current sensors from damage. The devices are protected from damage by the Bulk package. No more than 28mA current should be supplied by current sensors. A current sensor is designed for a current of 1kA. It is possible for the current sensors to supply 24V voltage when they are operating.

20311000101 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Panel Mount
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: 15V~24V
Frequency: 100kHz
Sensing Current: 1000A
Module, Single Pass Through Package

20311000101 Applications

There are a lot of HARTING
20311000101 Current Sensors applications.

Power factor correction
Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
