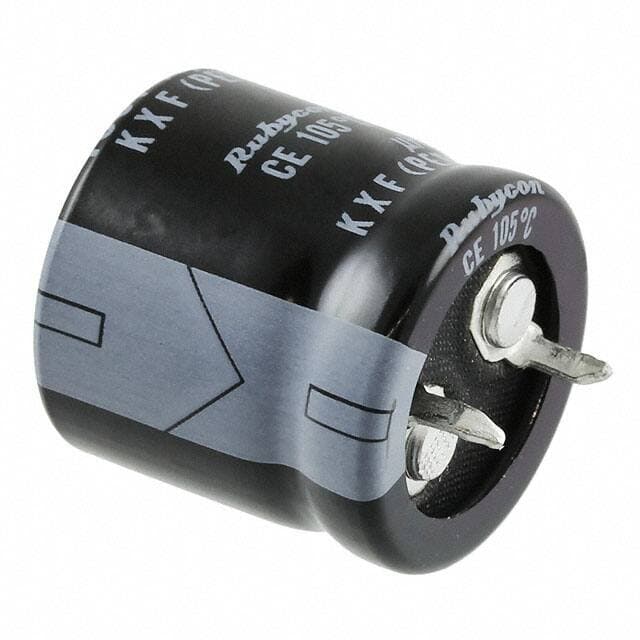

Rubycon 200KXF220MEFCSN22X20
Manufacturer No:
200KXF220MEFCSN22X20
Manufacturer:
Package:
Radial, Can - Snap-In
Description:
KXF 220?F Capacitor ±20% Bulk Through Hole 870mA 0.866Dia 22.00mm -25°C~105°C Polar 10.0076mm Radial, Can - Snap-In
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
200KXF220MEFCSN22X20 information
Rubycon 200KXF220MEFCSN22X20 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 200KXF220MEFCSN22X20.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can - Snap-In
- Dielectric Material
- ALUMINUM (WET)
- Operating Temperature
- -25°C~105°C
- Packaging
- Bulk
- Series
- KXF
- Published
- 2013
- Size / Dimension
- 0.866Dia 22.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Applications
- General Purpose
- Capacitance
- 220?F
- Voltage - Rated DC
- 200V
- Lead Pitch
- 10.0076mm
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Spacing
- 0.394 10.00mm
- Leakage Current
- 0.62929mA
- Ripple Current
- 870mA
- Polarization
- Polar
- Life (Hours)
- 3000 hours
- Tan Delta
- 0.2
- Ripple Current @ Low Frequency
- 870mA @ 120Hz
- Ripple Current @ High Frequency
- 1.305A @ 10kHz
- Diameter
- 22mm
- Height
- 20mm
- Height Seated (Max)
- 0.866 22.00mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Rubycon 200KXF220MEFCSN22X20.
Datasheets:
200KXF220MEFCSN22X20 Overview
In terms of ripple current, it is 1.305A @ 10kHz at full charge.When the charge is lowest, the ripple current is 870mA @ 120Hz.Sitting height (Max) should not exceed 0.866 22.00mm.Voltage - Rated DC of 200V is required to operate this capacitor.It is recommended to maintain the operating temperature at -25°C~105°C in order to maximize efficiency.
200KXF220MEFCSN22X20 Features
the ripple current is 1.305A @ 10kHz.
the ripple current is 870mA @ 120Hz.
voltage - Rated DC of 200V
an operating temperature of -25°C~105°C
200KXF220MEFCSN22X20 Applications
There are a lot of Rubycon
200KXF220MEFCSN22X20 applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
