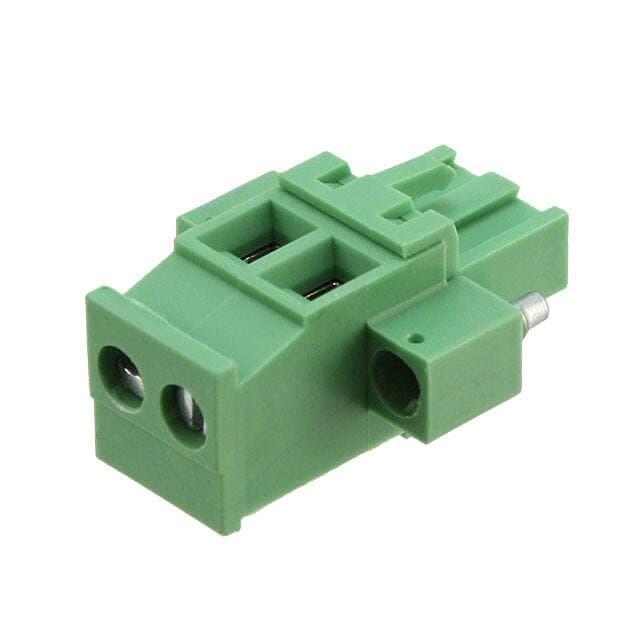

Amphenol 20020009-G021B01LF
Amphenol 20020009-G021B01LF

Amphenol 20020009-G021B01LF

Manufacturer No:

20020009-G021B01LF

Manufacturer:

Amphenol

Package:

Description:

Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets 02-500 Thermoplastic Resin Tin Copper Alloy

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20020009-G021B01LF information

Amphenol 20020009-G021B01LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 20020009-G021B01LF.

  • Type
  • Parameter
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Tin
  • Mount
  • Cable, Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Thermoplastic Resin
  • Operating Temperature
  • -40°C~115°C
  • Packaging
  • Bulk
  • Series
  • 02-500
  • Published
  • 2011
  • Feature
  • Mating Flange, Retention Latches (Wire Side)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Connector Type
  • Terminal Block
  • Type
  • Plug, Female Sockets
  • Number of Positions
  • 2
  • Max Operating Temperature
  • 115°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Green
  • Number of Rows
  • 1
  • Voltage - Rated
  • 300V
  • Pitch
  • 0.197 5.00mm
  • Orientation
  • Straight
  • Depth
  • 26mm
  • Current Rating
  • 8A
  • Termination Style
  • Screw - Rising Cage Clamp
  • Number of Contacts
  • 2
  • Housing Color
  • Green
  • Voltage
  • 300V
  • Number of Circuits
  • 2
  • Max Current Rating
  • 12A
  • Number of Levels
  • 1
  • Current
  • 12A
  • Wire Gauge (Max)
  • 24 AWG
  • Wire Gauge (Min)
  • 12 AWG
  • Wire/Cable Gauge
  • 24 AWG
  • Contact Mating Finish
  • Tin
  • Voltage - UL
  • 300V
  • Wire Gauge or Range - AWG
  • 12-24 AWG
  • Current - UL
  • 12A
  • Torque - Screw
  • 0.4 Nm (3.5 Lb-In)
  • Positions Per Level
  • 2
  • Plug Wire Entry
  • 90°
  • Wire Gauge or Range - mm²
  • 1-2.5mm2
  • Wire Strip Length
  • 6-7mm
  • Number of Positions Per Level
  • 2
  • Screw Size
  • M3

Download datasheets and manufacturer documentation for Amphenol 20020009-G021B01LF.

20020009-G021B01LF Overview


A Terminal Block package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the 02-500 Series of products.Whenever it's below 115°C, it's best to use it.The device must operate at a temperature of -40°C at all times.A number of features make it more powerful because of its Mating Flange, Retention Latches (Wire Side) feature.Cable, Free Hanging mounts the part.2 circuits make up the part.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Plug, Female Sockets products.

20020009-G021B01LF Features


02-500 series


20020009-G021B01LF Applications


There are a lot of Amphenol Anytek
20020009-G021B01LF Terminal Blocks applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
