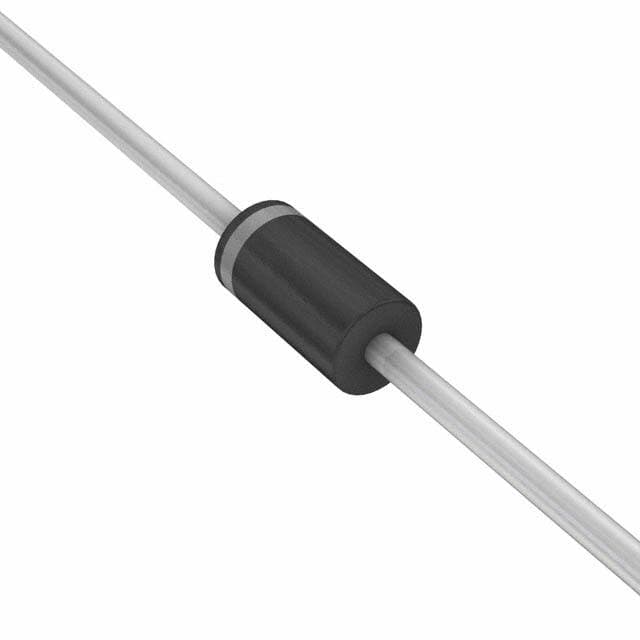

ROHM 1SR139-400T-32

Manufacturer No:

1SR139-400T-32

Manufacturer:

ROHM

Package:

O-PALF-W2

Description:

Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1SR139-400T-32 information

ROHM 1SR139-400T-32 technical specifications, attributes, parameters and parts with similar specifications to ROHM 1SR139-400T-32.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
ROHM CO LTD

Package Description
O-PALF-W2

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8541.10.00.80

Samacsys Manufacturer
ROHM Semiconductor

Additional Feature
HIGH RELIABILITY

Application
GENERAL PURPOSE

Case Connection
ISOLATED

Configuration
SINGLE

Diode Element Material
SILICON

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
1.1 V

JESD-30 Code
O-PALF-W2

Non-rep Pk Forward Current-Max
40 A

Number of Elements
1

Number of Phases
1

Number of Terminals
2

Operating Temperature-Max
150 °C

Output Current-Max
1 A

Package Body Material
PLASTIC/EPOXY

Package Style
LONG FORM

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Qualification Status
Not Qualified

Rep Pk Reverse Voltage-Max
400 V

Surface Mount
NO

Terminal Form
WIRE

Terminal Position
AXIAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Download datasheets and manufacturer documentation for ROHM 1SR139-400T-32.

Datasheets:

ROHMS07379-1.pdf

1SR139-400T-32 Overview

Reverse voltage 400V is a reasonable value.For this device, the average rectified current is 1A volts.In this case, forward current can reach 1A.As you can see, the fuse's current rating is 1A, which means that it can carry a maximum current for an indefinite period without losing too much performance.Phase diode rectifier is possible to use a surge current of maximum value 40A.Based on the data chart, the peak reverse is 10μA.

1SR139-400T-32 Features

an average rectified current of 1A volts
a current rating of 1A
the peak reverse is 10μA

1SR139-400T-32 Applications

There are a lot of ROHM Semiconductor
1SR139-400T-32 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
