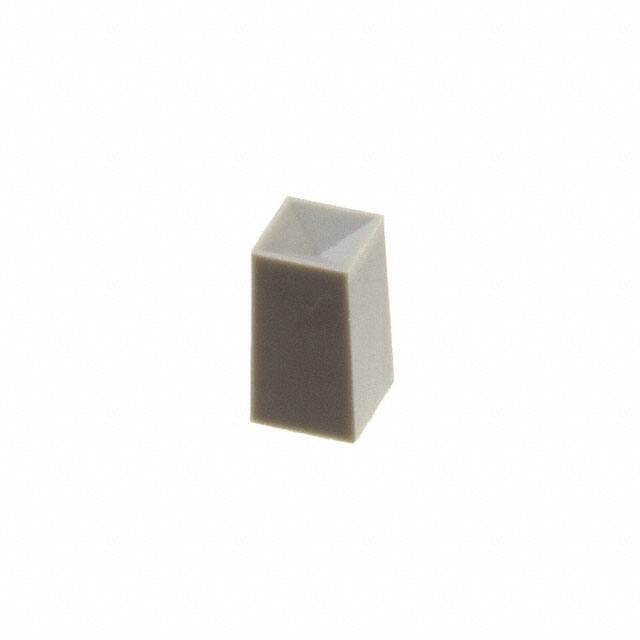

E-Switch 1DLGR
E-Switch 1DLGR

E-Switch 1DLGR

Manufacturer No:

1DLGR

Manufacturer:

E-Switch

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1DLGR information

E-Switch 1DLGR technical specifications, attributes, parameters and parts with similar specifications to E-Switch 1DLGR.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Mount
  • Hardware
  • Mounting Type
  • Snap Fit
  • Insulation Material
  • POLYAMIDE
  • Housing Material
  • POLYBUTYLENE TEREPHTHALATE
  • Shape
  • Square, Concave
  • Actuator Material
  • POLYOXYMETHYLENE
  • Center Contact Plating
  • SILVER
  • Center Contact Material
  • COPPER ALLOY
  • Terminal Material
  • COPPER ALLOY
  • End Contact Material
  • COPPER ALLOY
  • End Contact Plating
  • SILVER
  • Published
  • 2005
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Color
  • Gray, Light
  • Additional Feature
  • CAP COLOR- LIGHT GREEN
  • Operating Temperature (Max)
  • 70°C
  • Body Breadth
  • 9.0932 mm
  • Operating Temperature (Min)
  • -20°C
  • Switch Function
  • DPDT
  • Contact Resistance
  • 0.1mOhm
  • Insulation Resistance
  • 100000000Ohm
  • Contact Voltage(DC)-Max
  • 30V
  • Termination Type
  • SOLDER
  • Dielectric Withstanding Voltage
  • 250VAC V
  • Electrical Life
  • 10000 Cycle(s)
  • Illumination
  • Non-Illuminated
  • Switch Type
  • Pushbutton
  • Size
  • 4.50mm Lx4.50mm Wx9.00mm H
  • Contact Timing
  • BREAK-BEFORE-MAKE
  • Contact (DC) Max Rating R Load
  • 0.1A@30VDC
  • PCB Hole Count
  • 6
  • Actuator Travel
  • 2.9972 mm
  • Switch Action
  • LATCHED
  • Height
  • 9mm
  • Length
  • 5mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free
