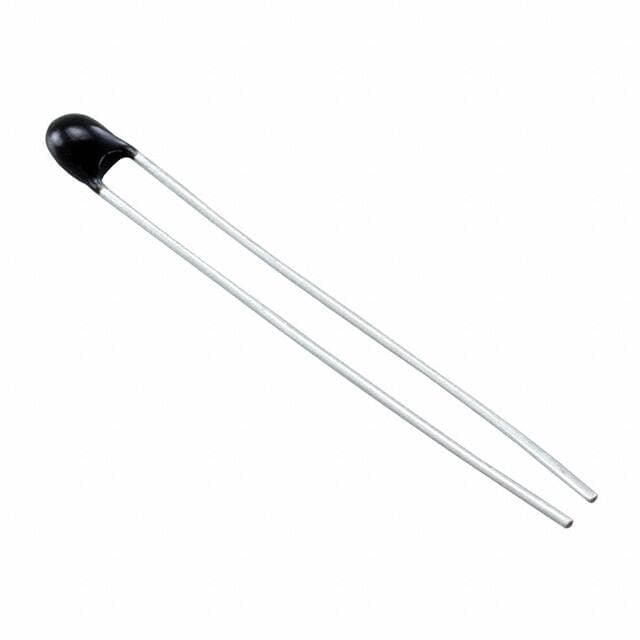

Ametherm 1DC502J-EC
Manufacturer No:
1DC502J-EC
Manufacturer:
Package:
Disc, 2.5mm Dia x 2.0mm W
Description:
Tolerance:10% 5k Through Hole -40°C~150°C 3988K B Value Tolerance:±3% Bulk
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1DC502J-EC information
Ametherm 1DC502J-EC technical specifications, attributes, parameters and parts with similar specifications to Ametherm 1DC502J-EC.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mounting Type
- Through Hole
- Package / Case
- Disc, 2.5mm Dia x 2.0mm W
- Operating Temperature
- -40°C~150°C
- Packaging
- Bulk
- Tolerance
- 10%
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Through Hole
- Resistance
- 5kOhm
- Max Operating Temperature
- 300°C
- Min Operating Temperature
- -55°C
- Lead Pitch
- 1.778mm
- Lead Length
- 1.50 38.00mm
- Power - Max
- 500mW
- Resistance Tolerance
- ±10%
- Resistance in Ω @ 25°C
- 5k
- B Value Tolerance
- ±3%
- B25/85
- 3988K
- B25/50
- 3934K
- B25/100
- 3999K
- B25/75
- 3960K
- B0/50
- 3892K
- Diameter
- 2.54mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Ametherm 1DC502J-EC.
Datasheets:
1DC502J-EC Overview
There is a Bulk package for NTC thermistors. The package Disc, 2.5mm Dia x 2.0mm W includes it for convenience. As a result, the resistance tolerance for NTC thermistors is ±10%. If you wish to ensure reliable performance, you should set the temperature of NTC thermistors to -40°C~150°C. A maximum operating temperature of 300°C is required for the reliable operation of NTC thermistors. For reliability, NTC thermistors may be operated at a temperature of -55°C. As a result of NTC thermistors, there is a maximum power setting of 500mW.
1DC502J-EC Features
Package/Case: Bulk
Operating Temperature: -40°C~150°C
5kOhm Resistance
Mounting Type: Through Hole
10% Tolerance
1DC502J-EC Applications
There are a lot of Ametherm
1DC502J-EC NTC Thermistors applications.
- Personal Computer and Peripheral Device
- Liquid Crystal Display
- Temperature measurement and compensation
- LCD compensation
- Battery packs
- Mobile phones
- CD players
- Heating systems
- Air-conditioning systems
- Refrigeration
