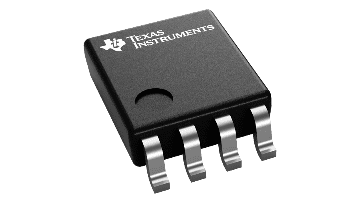

Texas Instruments 1B2G125DCURG4
Manufacturer No:
1B2G125DCURG4
Manufacturer:
Texas Instruments
Package:
Description:
2-ch, 0.8-V to 3.6-V low power buffers with 3-state outputs
Quantity:
In Stock :6794
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Sun, May 31 - Mon, Jun 1, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
1B2G125DCURG4 Information
Texas Instruments 1B2G125DCURG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments 1B2G125DCURG4.
- Type
- Parameter
- Technology family
- AUP
- Supply voltage (min) (V)
- 0.8
- Supply voltage (max) (V)
- 3.6
- Number of channels
- 2
- IOL (max) (mA)
- 4
- Supply current (max) (µA)
- 0.9
- IOH (max) (mA)
- -4
- Input type
- Standard CMOS
- Output type
- 3-State
- Features
- Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
- Type
- Parameter
- Rating
- Catalog
- Operating temperature range (°C)
- -40 to 85
- Package
- DSBGA (YFP)
- Pins
- 8
- Size
- 1.8 mm² 1 x 1.8
- Package
- DSBGA (YZP)
- Pins
- 8
- Size
- 2.8125 mm² 2.25 x 1.25
- Package
- UQFN (RSE)
- Pins
- 8
Download datasheets and manufacturer documentation for Texas Instruments 1B2G125DCURG4.
Data sheet:
Application brief:
Selection guide:
Application note:
The AUP family is TI’s premier solution to the industry’s low-power needs in battery-powered portable applications. This family ensures a very low static and dynamic power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in an increased battery life. This product also maintains excellent signal integrity (see Figure 1 and Figure 2).
The SN74AUP2G125 is a dual bus buffer gate designed for 0.8-V to 3.6-V VCC operation. This device features dual line drivers with 3-state outputs. Each output is disabled when the corresponding output-enable (OE) input is high. This device has the input-disable feature, which allows floating input signals.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
NanoStar™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
- Available in the Texas Instruments NanoStar™ Package
- Low Static-Power Consumption
(ICC = 0.9 µA Max) - Low Dynamic-Power Consumption
(Cpd = 4 pF Typ at 3.3 V) - Low Input Capacitance (CI = 1.5 pF Typ)
- Low Noise – Overshoot and Undershoot
<10% of VCC - Input-Disable Feature Allows Floating Input Conditions
- Ioff Supports Partial-Power-Down Mode Operation
- Input Hysteresis Allows Slow Input Transition and Better Switching
Noise Immunity at Input - Wide Operating VCC Range of 0.8 V to 3.6 V
- Optimized for 3.3-V Operation
- 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
- tpd = 5.4 ns Max at 3.3 V
- Suitable for Point-to-Point Applications
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
(A114-B, Class II) - 1000-V Charged-Device Model (C101)
- 2000-V Human-Body Model
NanoStar is a trademark of Texas Instruments
