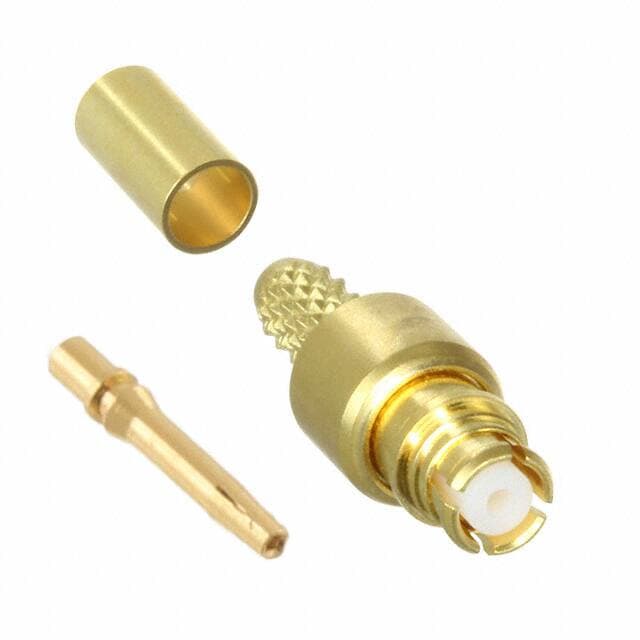

Rosenberger 19K101-103L5

Manufacturer No:

19K101-103L5

Manufacturer:

Rosenberger

Package:

Description:

Jack, Female Socket Snap-On 50Ohm SMP Crimp 1 Port Polytetrafluoroethylene (PTFE) -65°C~155°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

19K101-103L5 information

Rosenberger 19K101-103L5 technical specifications, attributes, parameters and parts with similar specifications to Rosenberger 19K101-103L5.

Type
Parameter

Factory Lead Time
11 Weeks

Mounting Type
Free Hanging (In-Line)

Insulation Material
LCP/PEEK/PTFE

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Beryllium Copper

Mounting Option 1
LOCKING

Center Contact Plating
Gold

Center Contact Material
Beryllium Copper

Panel Mount
NO

Operating Temperature
-65°C~155°C

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
335V

Additional Feature
STANDARD: MIL-STD-202; CAPTIVE CENTER CONTACT

Fastening Type
Snap-On

Subcategory
Other RF Connectors

MIL Conformance
YES

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Total Number of Contacts
1

Reliability
COMMERCIAL

Body Depth
0.65 inch

Contact Style
COAX

Contact Resistance
6mOhm

Insulation Resistance
5000000000Ohm

Impedance
50Ohm

Connector Style
SMP

Number of Ports
1

Frequency (Max)
26.5GHz

Contact Termination
Crimp

Operating Frequency-Max
40GHz

Insertion Loss
0.63 dB

Cable Group
RG-316

VSWR
1.5

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rosenberger 19K101-103L5.

Datasheets:

rosenberger-19k101103l5-datasheets-1068.pdf

19K101-103L5 Overview

This product is packaged in a Jack, Female Socket box.There is a Free Hanging (In-Line) mounting type for the device.Further, there are features such as STANDARD: MIL-STD-202; CAPTIVE CENTER CONTACT, to name only a few.There are 1 ports available for managing a variety of tasks on this device.This device operates at a temperature of -65°C~155°C.

19K101-103L5 Features

19K101-103L5 Applications

There are a lot of Rosenberger
19K101-103L5 Coaxial Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
