Adafruit Industries LLC 198

Manufacturer No:

198

Manufacturer:

Adafruit Industries LLC

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

198 information

Adafruit Industries LLC 198 technical specifications, attributes, parameters and parts with similar specifications to Adafruit Industries LLC 198.

Type
Parameter

Factory Lead Time
2 Weeks

Mount
Standard

Operating Temperature
-10°C~60°C

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
60°C

Min Operating Temperature
-10°C

Voltage - Supply
5V

Interface
Parallel, 8-Bit

Display Type
STN - Super-Twisted Nematic

Number of Characters
80

Viewing Area
76.00mm L x 26.00mm W

Display Mode
Transflective

Background Color
Blue

Dot Size
0.55mm Wx0.55mm H

Display Format
20 x 4

Outline L x W x H
97.00mm x 60.00mm x 14.00mm

Character Size
4.75mm Hx2.95mm W

Backlight Type
LED

Text Color
White

Character Format
5 x 8 Dots

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Adafruit Industries LLC 198.

Datasheets:

adafruitindustriesllc-181-datasheets-9178.pdf

adafruitindustriesllc-356-datasheets-9564.pdf

adafruitindustriesllc-198-datasheets-9182.pdf

Description:

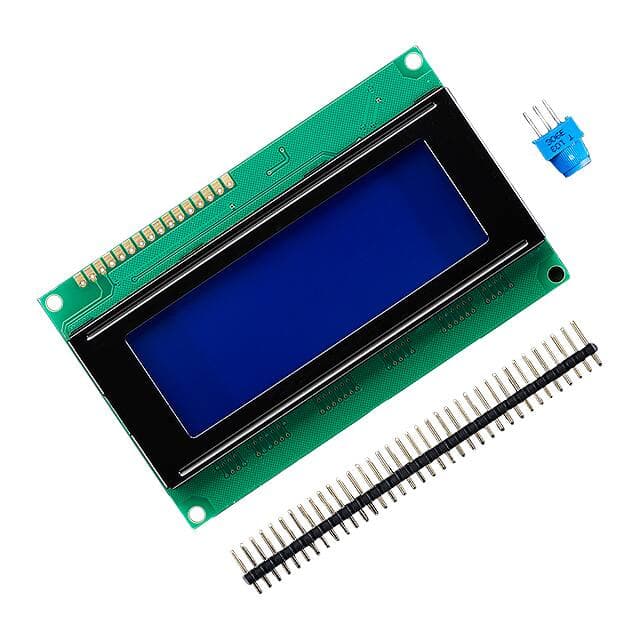

The Adafruit Industries Display Module - LCD, OLED Character and Numeric 198 is a 20x4 character LCD display module with a transflective backlight. It has an 80-character display with a wide viewing angle and a high contrast ratio. The module is designed to be used with a wide range of microcontrollers and is compatible with both 5V and 3.3V logic levels.

Features:
- 20x4 character LCD display
- Transflective backlight
- 80-character display
- Wide viewing angle
- High contrast ratio
- Compatible with 5V and 3.3V logic levels

Applications:
The Adafruit Industries Display Module - LCD, OLED Character and Numeric 198 is suitable for a wide range of applications, including industrial control, medical equipment, consumer electronics, and automotive applications. It can be used to display text, numbers, and graphics, and can be used to create user interfaces for embedded systems.
