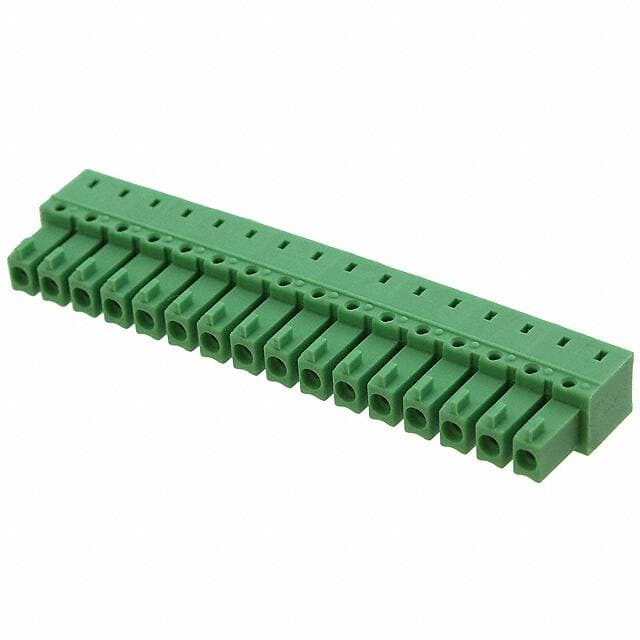

Phoenix 1862713
Manufacturer No:
1862713
Manufacturer:
Package:
Description:
Bulk 0.150 3.81mm Green 1 Levels Through Hole Header, Female Sockets COMBICON IMC Polyamide (PA), Nylon
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1862713 information
Phoenix 1862713 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1862713.
| Type | Parameter |
|---|---|
| Factory Lead Time | 4 Weeks |
| Contact Plating | Tin |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Housing Material | Polyamide (PA), Nylon |
| Weight | 5.380002g |
| Packaging | Bulk |
| Series | COMBICON IMC |
| Published | 2011 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN Code | EAR99 |
| Connector Type | Socket |
| Type | Header, Female Sockets |
| Color | Green |
| Number of Rows | 1 |
| Voltage - Rated | 160V |
| Additional Feature | PA, 94V-0 |
| HTS Code | 8536.69.40.40 |
| Pitch | 0.150 3.81mm |
| Orientation | Right Angle |
| Depth | 14.5mm |
| Insulation Height | 0.270 6.86mm |
| Type | Parameter |
|---|---|
| Termination Style | Solder |
| Voltage | 300V |
| Contact Tail Length | 0.134 3.40mm |
| Max Current Rating | 8A |
| Number of Levels | 1 |
| Current | 8A |
| Number of Decks | 1 |
| Voltage - IEC | 320V |
| Number of Ways | 16 |
| Safety Approval | UL |
| Header Orientation | 90°, Right Angle |
| Number of Positions Per Level | 16 |
| Height | 6.85mm |
| Length | 61.75mm |
| Width | 61.75mm |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | RoHS Compliant |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
