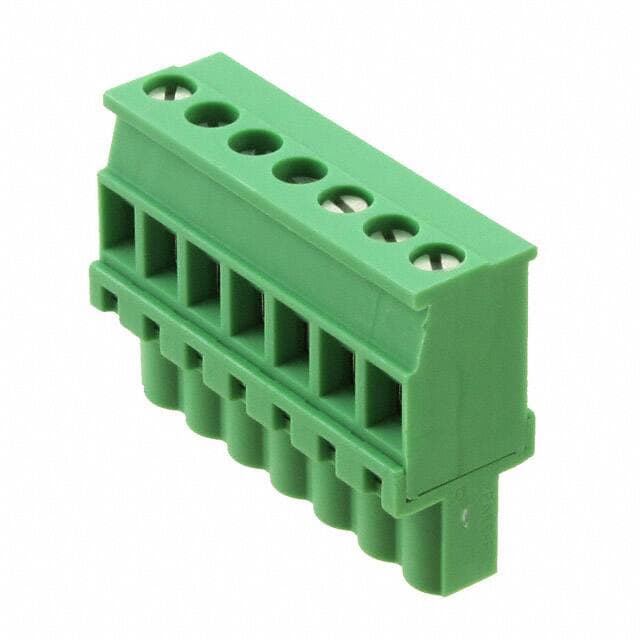

Phoenix 1792809
Manufacturer No:
1792809
Manufacturer:
Package:
Description:
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MVSTBW Polyamide (PA), Nylon
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1792809 information
Phoenix 1792809 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1792809.
| Type | Parameter |
|---|---|
| Factory Lead Time | 7 Weeks |
| Contact Plating | Tin |
| Mount | Cable, Free Hanging |
| Mounting Type | Free Hanging (In-Line) |
| Insulation Material | Nylon |
| Material | Polyamide |
| Housing Material | Polyamide (PA), Nylon |
| Weight | 133.000002g |
| Packaging | Bulk |
| Series | COMBICON MVSTBW |
| Published | 2003 |
| Feature | Retention Latches (Non-Wire Side) |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Screw |
| ECCN Code | EAR99 |
| Connector Type | Socket |
| Type | Plug, Female Sockets |
| Color | Green |
| Number of Rows | 1 |
| Gender | Female |
| Voltage - Rated | 250V |
| Additional Feature | PA, 94V-0 |
| Type | Parameter |
|---|---|
| Pitch | 0.200 5.08mm |
| Orientation | Straight |
| Depth | 12.6mm |
| Insulation Height | 1.024 26.01mm |
| Current Rating | 12A |
| Termination Style | Screw - Rising Cage Clamp |
| Approval Agency | CB, CSA, UL, VDE |
| Number of Contacts | 7 |
| Voltage | 300V |
| Max Supply Voltage | 250V |
| Max Current Rating | 12A |
| Number of Levels | 1 |
| Current | 15A |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 12 AWG |
| Number of Decks | 1 |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - IEC | 630V |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Number of Ways | 7 |
| Safety Approval | UL |
| Plug Wire Entry | 270° |
| Wire Gauge or Range - mm² | 0.2-2.5mm2 |
