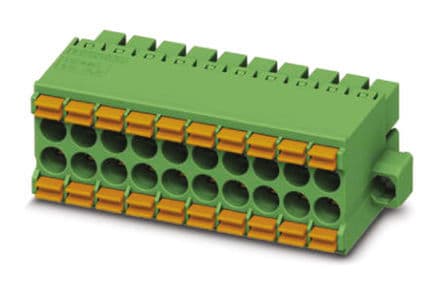

Phoenix Contact 1790386

Manufacturer No:

1790386

Manufacturer:

Phoenix Contact

Package:

Description:

Bulk 0.138 3.50mm Green 2 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON DFMC Polyamide (PA), Nylon Tin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1790386 information

Phoenix Contact 1790386 technical specifications, attributes, parameters and parts with similar specifications to Phoenix Contact 1790386.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Polyamide (PA), Nylon

Packaging
Bulk

Series
COMBICON DFMC

Published
2011

Feature
Mating Flange

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screwless

ECCN Code
EAR99

Connector Type
Screw

Type
Plug, Female Sockets

Number of Positions
22

Color
Green

Voltage - Rated
160V

HTS Code
8536.69.40.40

Pitch
0.138 3.50mm

Insulation Height
0.522 13.25mm

Current Rating
8A

Termination Style
Screwless - Push-In Spring

Voltage
150V

Number of Levels
2

Wire Gauge (Max)
16 AWG

Wire Gauge (Min)
24 AWG

Contact Mating Finish
Tin

Wire Gauge or Range - AWG
16-24 AWG

Voltage - IEC
250V

Positions Per Level
11

Plug Wire Entry
180°

Wire Gauge or Range - mm²
0.2-1.5mm2

Wire Strip Length
10mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Phoenix Contact 1790386.

Datasheets:

phoenixcontact-1790386-datasheets-4883.pdf

1790386 Overview

This product is packaged in a Screw box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON DFMC Series.In many ways, Mating Flange makes it more powerful.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1790386 Features

COMBICON DFMC series

1790386 Applications

There are a lot of Phoenix Contact
1790386 Terminal Blocks applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
