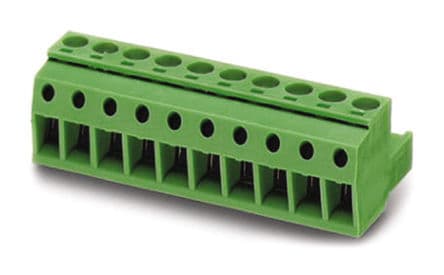

Phoenix 1769133
Phoenix 1769133

Phoenix 1769133

Manufacturer No:

1769133

Manufacturer:

Phoenix

Package:

Description:

Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTBP Polyamide (PA), Nylon Tin

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1769133 information

Phoenix 1769133 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1769133.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Polyamide (PA), Nylon
  • Weight
  • 128.999997g
  • Packaging
  • Bulk
  • Series
  • COMBICON MSTBP
  • Published
  • 2011
  • Feature
  • Retention Latches (Non-Wire Side)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Screw
  • Type
  • Plug, Female Sockets
  • Number of Positions
  • 14
  • Color
  • Green
  • Number of Rows
  • 1
  • Voltage - Rated
  • 250V
  • Additional Feature
  • PA, 94V-0
  • HTS Code
  • 8536.69.40.40
  • Pitch
  • 0.200 5.08mm
  • Insulation Height
  • 0.591 15.00mm
  • Current Rating
  • 12A
  • Voltage
  • 300V
  • Number of Levels
  • 1
  • Current
  • 15A
  • Wire Gauge (Max)
  • 12 AWG
  • Wire Gauge (Min)
  • 24 AWG
  • Contact Mating Finish
  • Tin
  • Number of Decks
  • 1
  • Wire Gauge or Range - AWG
  • 12-30 AWG
  • Voltage - IEC
  • 630V
  • Torque - Screw
  • 0.5-0.6 Nm (4.4-5.3 Lb-In)
  • Number of Ways
  • 14
  • Safety Approval
  • UL
  • Plug Wire Entry
  • 180°
  • Wire Gauge or Range - mm²
  • 0.2-2.5mm2
  • Wire Strip Length
  • 7mm
  • Current - IEC
  • 12A
  • Screw Size
  • M3
  • Wire Cross Section
  • 2.5 mm2
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for Phoenix 1769133.

Datasheets:

PCN Design/Specification:

1769133 Overview


It comes in a Screw package.Free Hanging (In-Line) is the mounting type of the device.We pack the product in a Bulk case.This is from the COMBICON MSTBP Series.As well as PA, 94V-0, to name a few.A number of advantages can be derived from its Retention Latches (Non-Wire Side) feature.This part is mounted by Free Hanging. Other Plug, Female Sockets products benefit from this part as well.

1769133 Features


COMBICON MSTBP series


1769133 Applications


There are a lot of Phoenix Contact
1769133 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
