Phoenix 1762075
Manufacturer No:
1762075
Manufacturer:
Package:
Description:

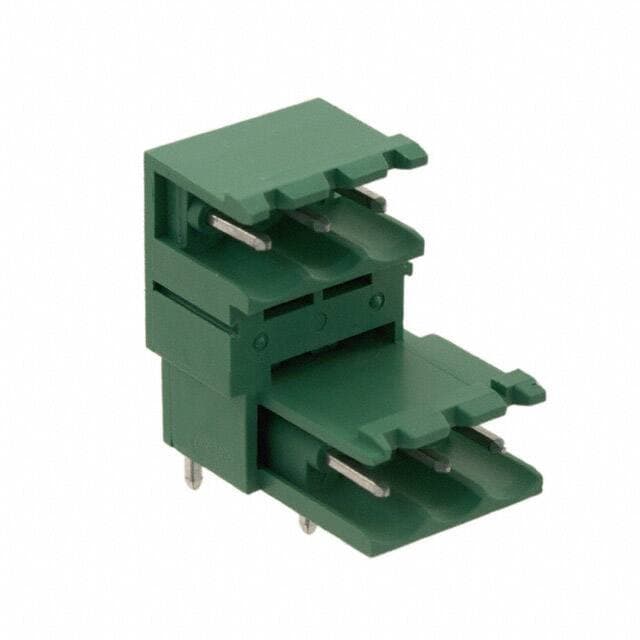

Bulk 0.200 5.08mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MDSTB Polybutylene Terephthalate (PBT)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1762075 information
Phoenix 1762075 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1762075.
| Type | Parameter |
|---|---|
| Factory Lead Time | 7 Weeks |
| Contact Plating | Tin |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Weight | 158g |
| Packaging | Bulk |
| Series | COMBICON MDSTB |
| Published | 2005 |
| Feature | Interlocking (Side) |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN Code | EAR99 |
| Connector Type | Plug |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Number of Positions | 6 |
| Color | Green |
| Number of Rows | 2 |
| Voltage - Rated | 250V |
| Additional Feature | UL 94V-0, PBT, SAFETY APPROVAL: UL; VDE |
| Voltage - Rated DC | 508mV |
| Pitch | 0.200 5.08mm |
| Orientation | Right Angle |
| Type | Parameter |
|---|---|
| Insulation Height | 0.933 23.70mm |
| Current Rating | 10A |
| Termination Style | Solder |
| Approval Agency | CSA, UL |
| Number of Contacts | 12 |
| Voltage | 300V |
| Contact Tail Length | 0.126 3.20mm |
| Max Current Rating | 10A |
| Number of Levels | 2 |
| Current | 15A |
| Number of Decks | 2 |
| Voltage - IEC | 400V |
| Number of Ways | 3 |
| Safety Approval | CB; CCA; CSA; CUL; EAC; GL |
| Header Orientation | 90°, Right Angle |
| Number of Positions Per Level | 3 |
| Fastening Method | CONNECTOR |
| Height | 22.1mm |
| Length | 17.78mm |
| Width | 26.9mm |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | RoHS Compliant |
| Flammability Rating | UL94 V-0 |
