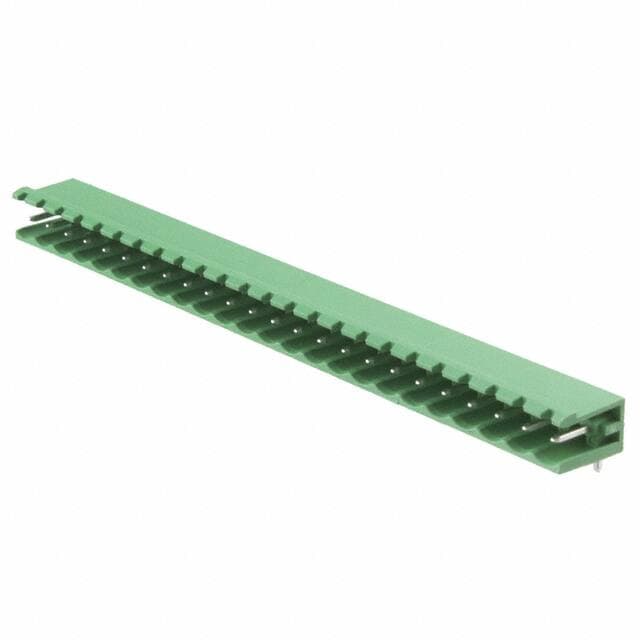

Phoenix 1759237
Manufacturer No:
1759237
Manufacturer:
Package:
Description:
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MSTB Polyamide (PA), Nylon Tin
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1759237 information
Phoenix 1759237 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1759237.
Type | Parameter |
---|---|
Factory Lead Time | 4 Weeks |
Mounting Type | Through Hole |
Housing Material | Polyamide (PA), Nylon |
Packaging | Bulk |
Series | COMBICON MSTB |
Published | 2012 |
Pbfree Code | yes |
Part Status | Active |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
ECCN Code | EAR99 |
Type | Header, Male Pins, Shrouded (2 Side) |
Number of Positions | 24 |
Color | Green |
Number of Rows | 1 |
HTS Code | 8536.69.40.40 |
Pitch | 0.200 5.08mm |
Insulation Height | 0.339 8.61mm |
Termination Style | Solder |
Contact Tail Length | 0.138 3.50mm |
Number of Levels | 1 |
Contact Mating Finish | Tin |
Voltage - UL | 300V |
Number of Decks | 1 |
Current - UL | 15A |
Type | Parameter |
---|---|
Number of Ways | 24 |
Safety Approval | UL; CSA |
Header Orientation | 90°, Right Angle |
Current - IEC | 12A |
Fastening Method | PLUG IN |
Rated Voltage | 250V |
Material Flammability Rating | UL94 V-0 |
RoHS Status | RoHS Compliant |
