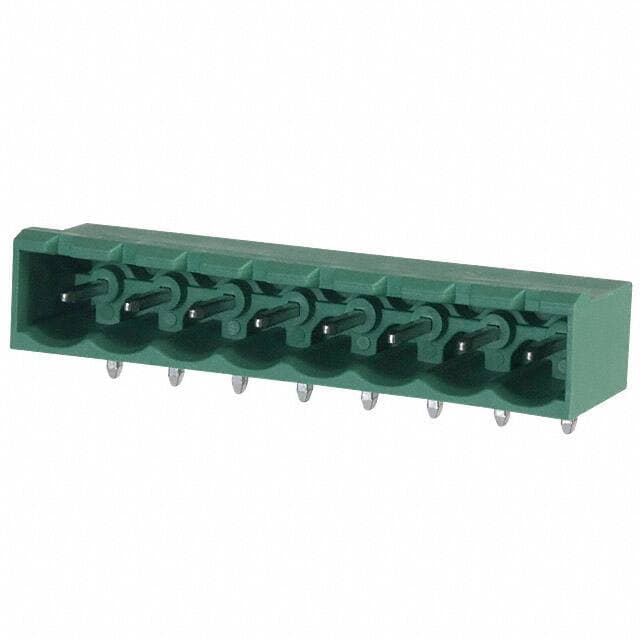

Phoenix 1757307
Manufacturer No:
1757307
Manufacturer:
Package:
Description:
Bulk 0.200 5.08mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MSTBA Polyamide (PA), Nylon
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1757307 information
Phoenix 1757307 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1757307.
| Type | Parameter |
|---|---|
| Factory Lead Time | 7 Weeks |
| Contact Plating | Tin |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Housing Material | Polyamide (PA), Nylon |
| Weight | 152.999995g |
| Packaging | Bulk |
| Series | COMBICON MSTBA |
| Published | 2001 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN Code | EAR99 |
| Connector Type | Plug |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Min Operating Temperature | -40°C |
| Color | Green |
| Number of Rows | 1 |
| Gender | Male |
| Additional Feature | STANDARD: UL 94V-0, PBT |
| Voltage - Rated DC | 320V |
| Pitch | 0.200 5.08mm |
| Orientation | Right Angle |
| Depth | 12mm |
| Type | Parameter |
|---|---|
| Current Rating | 12A |
| Termination Style | Solder |
| Voltage - Rated AC | 250V |
| Approval Agency | CSA, EN, UL, VDE |
| Lead Pitch | 5.08mm |
| Voltage | 300V |
| Contact Tail Length | 0.138 3.50mm |
| Max Current Rating | 12A |
| Number of Levels | 1 |
| Current | 15A |
| Number of Poles | 8 |
| Number of Decks | 1 |
| Voltage - IEC | 400V |
| Number of Ways | 8 |
| Safety Approval | CB; CSA; GOST; UL; VDE |
| Header Orientation | 90°, Right Angle |
| Fastening Method | CONNECTOR |
| Height | 8.75mm |
| Length | 42.64mm |
| Width | 42.56mm |
| Thickness | 35.56mm |
| Material Flammability Rating | UL94 V-0 |
| REACH SVHC | No SVHC |
