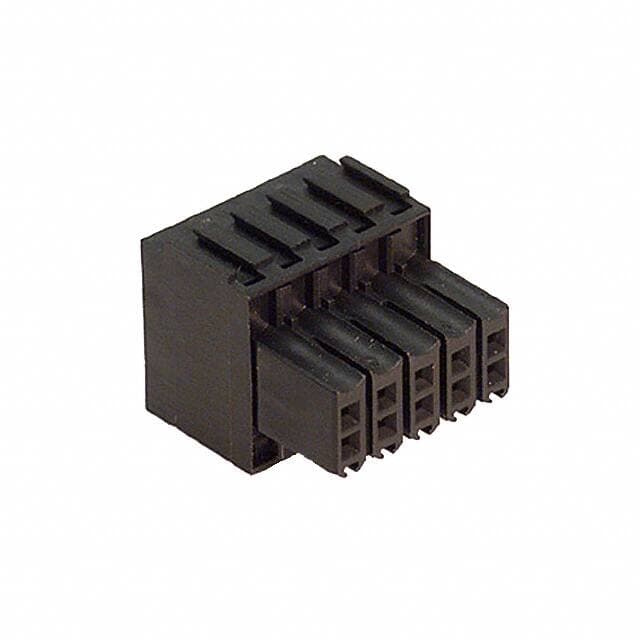

Weidmüller 1727660000
Manufacturer No:
1727660000
Manufacturer:
Package:
Description:
Bulk 0.138 3.50mm Black 2 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate B2L Polybutylene Terephthalate (PBT) Tin Copper Alloy
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1727660000 information
Weidmüller 1727660000 technical specifications, attributes, parameters and parts with similar specifications to Weidmüller 1727660000.
| Type | Parameter |
|---|---|
| Factory Lead Time | 16 Weeks |
| Contact Material | Copper Alloy |
| Mount | Cable, Free Hanging |
| Mounting Type | Free Hanging (In-Line) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature | -50°C~100°C |
| Packaging | Bulk |
| Series | Omnimate B2L |
| Published | 2009 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Termination | Crimp |
| Type | Plug, Female Sockets |
| Number of Positions | 10 |
| Color | Black |
| Number of Rows | 2 |
| Gender | Female |
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Mixed Contacts | NO |
| Type | Parameter |
|---|---|
| Pitch | 0.138 3.50mm |
| Total Number of Contacts | 10 |
| Orientation | Straight |
| Ingress Protection | IP20 |
| Depth | 20.6mm |
| Insulation Height | 0.618 15.70mm |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| UL Flammability Code | 94V-0 |
| Voltage | 150V |
| Max Supply Voltage | 300V |
| Max Current Rating | 10A |
| Number of Levels | 2 |
| Current | 10A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 16 AWG |
| Contact Mating Finish | Tin |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - IEC | 200V |
| Positions Per Level | 5 |
| Plug Wire Entry | 180° |
| Wire Gauge or Range - mm² | 0.2-1mm2 |
| Wire Strip Length | 7mm |
| Current - IEC | 10.3A |
