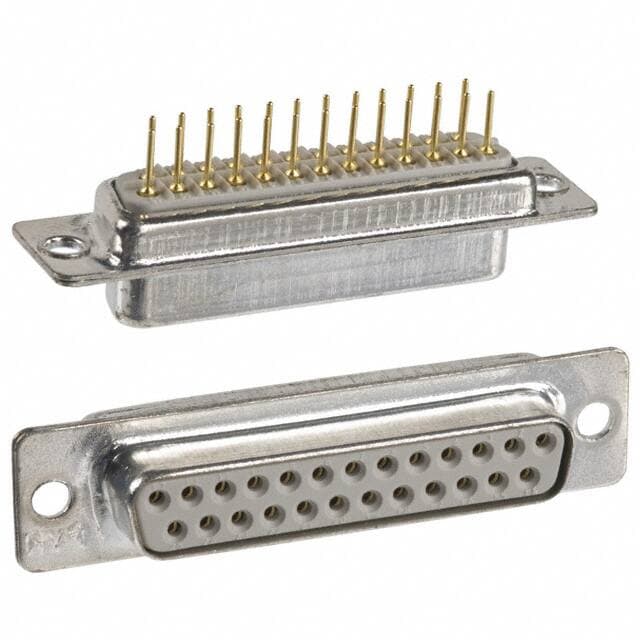

NorComp Inc. 172-025-212R001

Manufacturer No:

172-025-212R001

Manufacturer:

Package:

Description:

172, M Series Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Solder 3 DB B Panel Mount, Through Hole Brass Gold Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

172-025-212R001 information

NorComp Inc. 172-025-212R001 technical specifications, attributes, parameters and parts with similar specifications to NorComp Inc. 172-025-212R001.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Panel Mount, Through Hole

Dielectric Material
Polybutylene Terephthalate (PBT), Polyester

Housing Material
PBT

Body Material
Steel

Shell Material, Finish
Steel, Tin Plated

Operating Temperature
-50°C~100°C

Packaging
Tray

Series
172, M Series

Published
2006

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle, Female Sockets

Number of Positions
25

Color
Beige

Number of Rows
2

Gender
Receptacle

HTS Code
8536.69.40.30

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Signal

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
2.84mm

Total Number of Contacts
25

Current Rating
5A

Shell Finish
TIN

Contact Finish
Gold

UL Flammability Code
94V-0

Empty Shell
NO

Flange Feature
Housing/Shell (Unthreaded)

Connector Style
D-Sub

Contact Form
Machined

Shell Size, Connector Layout
3 DB B

Height
10.1mm

Length
53mm

Width
12.6mm

Contact Finish Thickness
Flash

Material Flammability Rating
UL94 V-0

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NorComp Inc. 172-025-212R001.

Datasheets:

norcompinc-172009212r021-datasheets-6162.pdf

172-025-212R001 Overview

The product comes in a package of Receptacle, Female Sockets.This device's mounting type is Panel Mount, Through Hole.It's packaged in a Tray case.172, M Series Series product.Through Hole is mounting the part.Running in -50°C~100°C Operating Temperature.

172-025-212R001 Features

172, M Series series

172-025-212R001 Applications

There are a lot of NorComp Inc.
172-025-212R001 D-Sub Connectors applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
