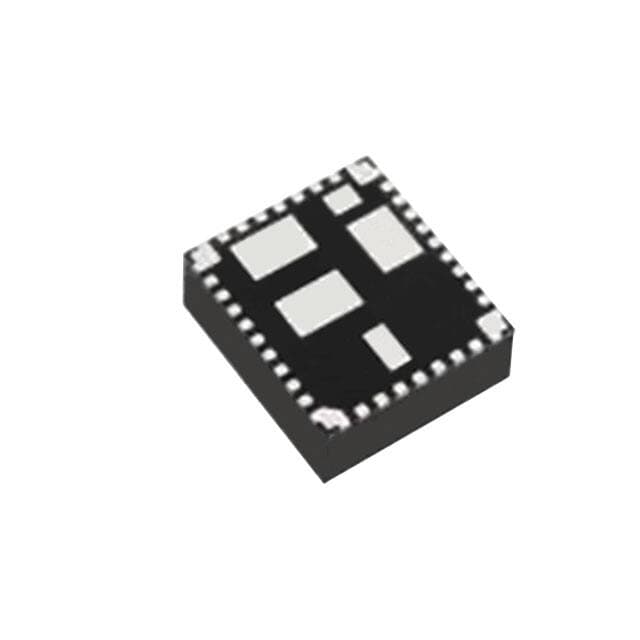

WURTH 171021501
WURTH 171021501

WURTH 171021501

Manufacturer No:

171021501

Manufacturer:

WURTH

Package:

41-PowerBQFN Module

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

171021501 information

WURTH 171021501 technical specifications, attributes, parameters and parts with similar specifications to WURTH 171021501.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 41-PowerBQFN Module
  • Number of Pins
  • 41
  • Supplier Device Package
  • 41-BQFN (11x9)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • MagI3C, VDRM
  • Size / Dimension
  • 0.43Lx0.35W x 0.11 H 11.0mmx9.0mmx2.8mm
  • Feature
  • OCP, OTP, OVP, UVLO
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Type
  • Non-Isolated PoL Module
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • ITE (Commercial)
  • Number of Outputs
  • 1
  • Efficiency
  • 79%
  • Voltage - Input (Max)
  • 50V
  • Output Voltage
  • 2.5V
  • Max Output Current
  • 2.5A
  • Voltage - Output 1
  • 2.5V~15V
  • Voltage - Input (Min)
  • 7V
  • Current - Output (Max)
  • 2.5A
  • Control Features
  • Enable, Active High
  • Max Output Voltage
  • 15V
  • Min Input Voltage
  • 7V
  • Max Input Voltage
  • 50V
  • Min Output Voltage
  • 2.5V
  • Switching Frequency
  • 1MHz
  • Height
  • 2.794mm
  • Length
  • 10.922mm
  • Width
  • 8.89mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for WURTH 171021501.

Datasheets:

Environmental Information:

171021501 Description


The 171021501 is a MagI³C Power Module, VDRM - Variable Step Down Regulator Module, 7 - 50V / 2.5A / 2.5 - 15V Output. The MagI³C Power Module family's VDRM series offers an integrated DC-DC power supply that includes a single unit's buck switching regulator and inductor.

The WPMDU1251501 provides high output current and efficiency. It works with input voltages ranging from 7V to 50V. It is intended to respond quickly to transients.

It comes in the typical BQFN-41 (9 x 11 x 2.8mm) industrial high power density packaging with good thermal performance.

The VDRM regulators contain on-board protective circuitry with thermal shutdown, over-current, shortcircuit, overvoltage, and undervoltage protections to prevent thermal overstress and electrical damage.



171021501 Features


  • Adjustable soft-start and voltage tracking

  • Frequency synchronization with external clock

  • Thermal shutdown and output short circuit protection

  • Cycle by cycle current limit

  • Power Good

  • Operating ambient temperature up to 85°C

  • Operating junction temp. range: -40 to 105°C

  • RoHS & REACH compliant

  • Mold compound UL 94 Class V0 (flammability testing) certified

  • Complies with EN 55022 class B radiated and conducted emissions standard

  • Peak efficiency up to 96%

  • Current capability up to 2.5A

  • Wide input voltage range: 7V to 50V

  • 65V transients capability

  • Output voltage range: 2.5V to 15V

  • Continuous output power: 37.5W

  • Integrated shielded inductor solution for quick time to market and ease of use

  • Adjustable switching frequency (0.3 to 1MHz)

  • Current Mode Control

  • Undervoltage lockout protection (UVLO)



171021501 Applications


  • System power supplies

  • DSPs, FPGAs, MCUs and MPUs supply

  • I/O interface power supply

  • Point-of-Load DC-DC applications from 12V and 24V industrial rails

  • Industrial, Test & Measurement, Medical applications
