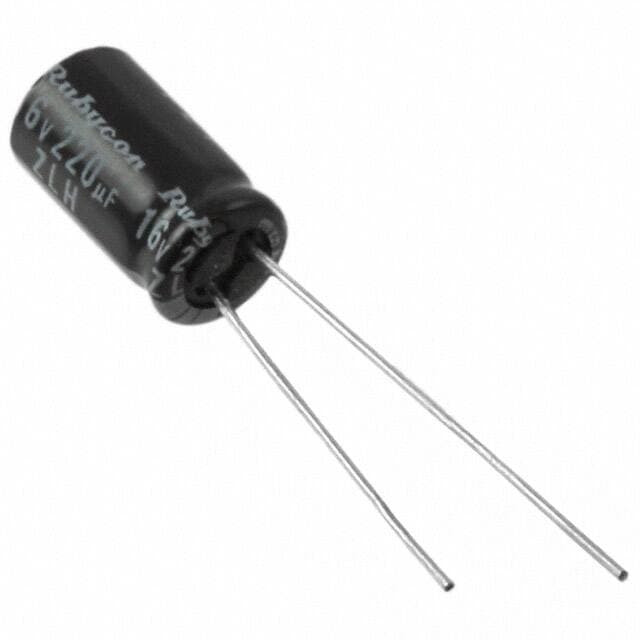

Rubycon 16ZLH220MEFC6.3X11

Manufacturer No:

16ZLH220MEFC6.3X11

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

ZLH 220?F Capacitor ±20% Bulk Through Hole 540mA 0.248Dia 6.30mm -40°C~105°C Polar 2.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

16ZLH220MEFC6.3X11 information

Rubycon 16ZLH220MEFC6.3X11 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 16ZLH220MEFC6.3X11.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
ZLH

Size / Dimension
0.248Dia 6.30mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
16V

Lead Pitch
2.5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.098 2.50mm

Lead Diameter
500 ?m

Lifetime @ Temp
6000 Hrs @ 105°C

Leakage Current
3?A

Ripple Current
540mA

Polarization
Polar

Life (Hours)
6000 hours

Tan Delta
0.16

Impedance
94mOhm

Ripple Current @ Low Frequency
270mA @ 120Hz

Ripple Current @ High Frequency
540mA @ 100kHz

Ripple Current (AC)
540mA

Diameter
6.3mm

Height
11mm

Height Seated (Max)
0.492 12.50mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 16ZLH220MEFC6.3X11.

16ZLH220MEFC6.3X11 Overview

A full charge means 540mA @ 100kHz ripple current.During the lowest charge, ripple current is 270mA @ 120Hz.You should keep the seated height (Max) below 0.492 12.50mm.The capacitor operates from 16V DC voltage.When operating at -40°C~105°C, high efficiency can be achieved.

16ZLH220MEFC6.3X11 Features

the ripple current is 540mA @ 100kHz.
the ripple current is 270mA @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -40°C~105°C

16ZLH220MEFC6.3X11 Applications

There are a lot of Rubycon
16ZLH220MEFC6.3X11 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
