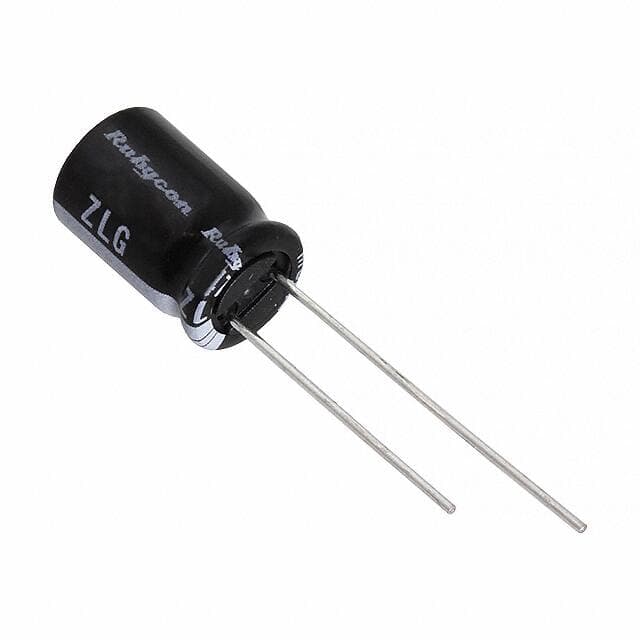

rubycon 16ZLG330MEFCT78X11.5

Manufacturer No:

16ZLG330MEFCT78X11.5

Manufacturer:

rubycon

Package:

Radial, Can

Description:

ZLG 330?F Capacitor ±20% Tape & Box (TB) Through Hole 1A 0.315Dia 8.00mm -40°C~105°C Polar 3.5052mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

16ZLG330MEFCT78X11.5 information

rubycon 16ZLG330MEFCT78X11.5 technical specifications, attributes, parameters and parts with similar specifications to rubycon 16ZLG330MEFCT78X11.5.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
ALUMINUM

Operating Temperature
-40°C~105°C

Packaging
Tape & Box (TB)

Series
ZLG

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Applications
General Purpose

Voltage - Rated
16V

Capacitance
330?F

Terminal Pitch
3.5mm

Lead Pitch
3.5052mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.138 3.50mm

Rated (DC) Voltage (URdc)
16V

Lifetime @ Temp
3000 Hrs @ 105°C

Ripple Current
1A

Life (Hours)
3000 hours

Impedance
36mOhm

Ripple Current @ Low Frequency
550mA @ 120Hz

Ripple Current @ High Frequency
1A @ 100kHz

Diameter
8mm

Height Seated (Max)
0.512 13.00mm

Length
11.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for rubycon 16ZLG330MEFCT78X11.5.

16ZLG330MEFCT78X11.5 Overview

As far as the ripple current is concerned, it is 1A @ 100kHz at full charge.As far as the ripple current is concerned, it is 550mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.512 13.00mm.The rated (DC) voltage (URdc) of the device should be set at 16V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

16ZLG330MEFCT78X11.5 Features

the ripple current is 1A @ 100kHz.
the ripple current is 550mA @ 120Hz.
an operating temperature of -40°C~105°C

16ZLG330MEFCT78X11.5 Applications

There are a lot of Rubycon
16ZLG330MEFCT78X11.5 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
