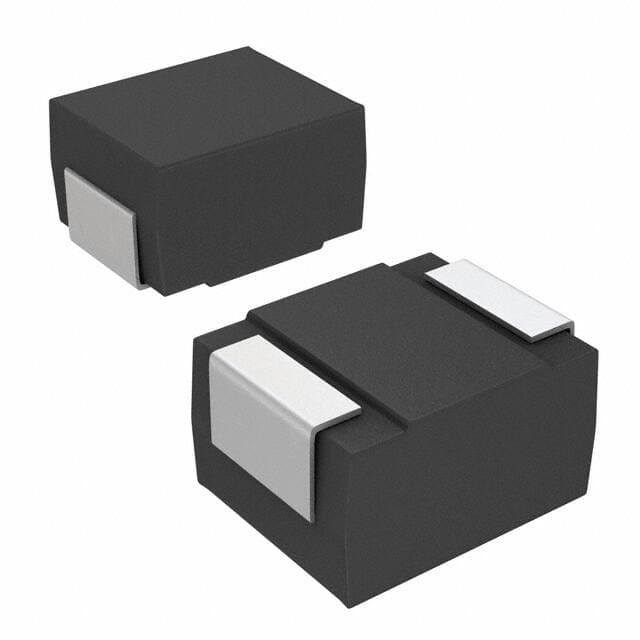

PANASONIC 16TQC10M

Manufacturer No:

16TQC10M

Manufacturer:

PANASONIC

Package:

CHIP

Description:

Description: Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1411, CHIP, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

16TQC10M information

PANASONIC 16TQC10M technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 16TQC10M.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
PANASONIC CORP

Package Description
CHIP

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Factory Lead Time
30 Weeks

Samacsys Manufacturer
Panasonic

Capacitance
10 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (SOLID POLYMER)

ESR
100 mΩ

Height
1.9 mm

Leakage Current
0.048 mA

Length
3.5 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
20%

Number of Terminals
2

Operating Temperature-Max
105 °C

Operating Temperature-Min
-55 °C

Package Shape
RECTANGULAR PACKAGE

Package Style
SMT

Packing Method
TR, EMBOSSED, 7 INCH

Positive Tolerance
20%

Rated (DC) Voltage (URdc)
16 V

Ripple Current
800 mA

Size Code
1411

Surface Mount
YES

Tan Delta
0.10

Terminal Finish
Copper/Nickel/Palladium/Gold (Cu/Ni/Pd/Au)

Terminal Shape
J BEND

Width
2.8 mm

Download datasheets and manufacturer documentation for PANASONIC 16TQC10M.

Datasheets:

PANA-S-A0020243833-1.pdf

16TQC10M Overview

It is measured that there is 800mA ripple current in the part.ESRs (Equivalent Series Resistances) ought to be kept at 100mOhm @ 100kHz for high efficiency.48?A leakage current is supported.This device operates with a capacitance of 10?F.In order to ensure that it is reliable, it operates at a voltage rated DC of 16V.There is a voltage rating of -55°C~105°Cv - Rated AC.In the seated position, it has a maximum height of 0.083 2.10mm°C, so it is stable under all conditions.

16TQC10M Features

800mA ripple current
a 100mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 48?A
with a capacitance of 10?F
the voltage - rated DC of 16V
an AC voltage of -55°C~105°C

16TQC10M Applications

There are a lot of Panasonic Electronic Components
16TQC10M applications of tantalum polymer capacitors.

Smart phone
Tablets
Notebook
LCD TV
Power supplies
