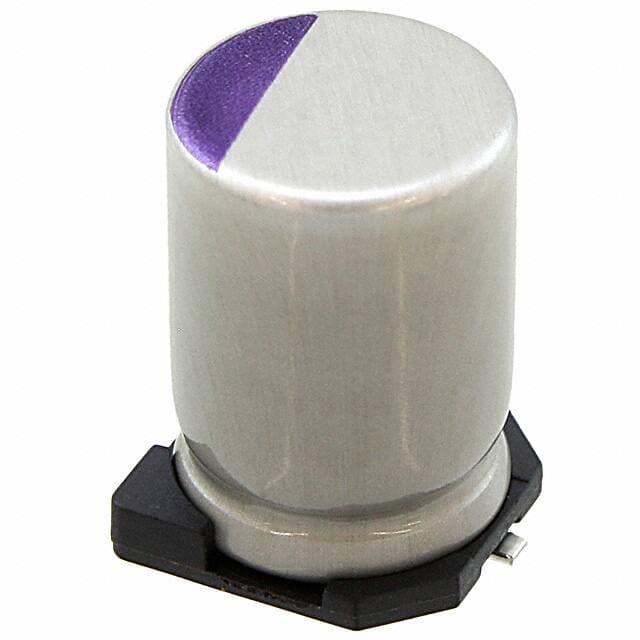

PANASONIC 16SVPC270M
PANASONIC 16SVPC270M

PANASONIC 16SVPC270M

Manufacturer No:

16SVPC270M

Manufacturer:

PANASONIC

Package:

Radial, Can - SMD

Description:

270?F ±20% Radial, Can - SMD 0.472 12.00mm Cut Tape (CT) 16mOhm OS-CON?, SVPC Surface Mount Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

16SVPC270M information

PANASONIC 16SVPC270M technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 16SVPC270M.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • ONE SURFACE
  • Number of Pins
  • 12
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.327Lx0.327W 8.30mmx8.30mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • OS-CON?, SVPC
  • Published
  • 2007
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Type
  • Polymer
  • Applications
  • General Purpose
  • Capacitance
  • 270?F
  • Voltage - Rated DC
  • 16V
  • Packing Method
  • TR
  • Polarity
  • Polar
  • Size Code
  • 3333
  • Voltage
  • 16V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 864?A
  • Ripple Current
  • 4.07A
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.15
  • Ripple Current @ Low Frequency
  • 203.5mA @ 120Hz
  • Ripple Current @ High Frequency
  • 4.07A @ 100kHz
  • Dissipation Factor
  • 15 %
  • Ripple Current (AC)
  • 4.07A
  • Diameter
  • 8mm
  • Height
  • 11.9mm
  • Height Seated (Max)
  • 0.472 12.00mm
  • Width
  • 8.3mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for PANASONIC 16SVPC270M.

Datasheets:

PCN Packaging:

16SVPC270M Overview


Systems need 4.07A @ 100kHz ripple current at high frequencies in order to function.A value of 16mOhm is assigned to the electrical device's ESR (Equivalent Series Resistance).The 12 pin remains in place.Providing a ripple current at low frequency is necessary for 203.5mA @ 120Hz to function properly.Dissipation factor of 15 % is important to note for the part.A stable operation requires an operating temperature of -55°C~105°C.

16SVPC270M Features


4.07A @ 100kHz ripple current on a high frequency
a 16mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C


16SVPC270M Applications


There are a lot of Panasonic Electronic Components
16SVPC270M applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
