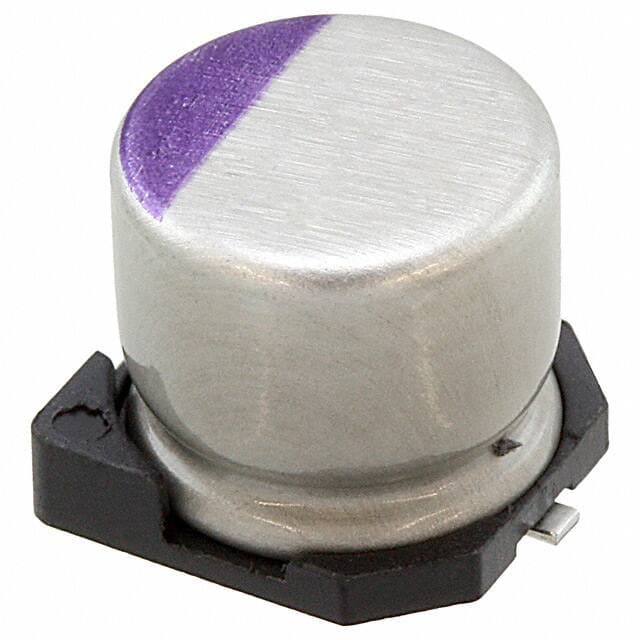

Panasonic 16SVPC100M
Panasonic 16SVPC100M

Panasonic 16SVPC100M

Manufacturer No:

16SVPC100M

Manufacturer:

Panasonic

Package:

Radial, Can - SMD

Description:

100?F ±20% Radial, Can - SMD 0.236 6.00mm Cut Tape (CT) 24mOhm OS-CON?, SVPC Surface Mount Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

16SVPC100M information

Panasonic 16SVPC100M technical specifications, attributes, parameters and parts with similar specifications to Panasonic 16SVPC100M.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • ONE SURFACE
  • Number of Pins
  • 6
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.260Lx0.260W 6.60mmx6.60mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • OS-CON?, SVPC
  • Published
  • 2013
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e1
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Type
  • Polymer
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu) - hot dipped
  • Applications
  • General Purpose
  • Capacitance
  • 100?F
  • Packing Method
  • TR
  • ESR (Equivalent Series Resistance)
  • 24mOhm
  • Polarity
  • Polar
  • Voltage
  • 16V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 300?A
  • Ripple Current
  • 2.49A
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.12
  • Ripple Current @ Low Frequency
  • 124.5mA @ 120Hz
  • Ripple Current @ High Frequency
  • 2.49A @ 100kHz
  • Dissipation Factor
  • 12 %
  • Ripple Current (AC)
  • 2.49A
  • Diameter
  • 6.3mm
  • Height
  • 5.9mm
  • Height Seated (Max)
  • 0.236 6.00mm
  • Length
  • 7.3mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Panasonic 16SVPC100M.

Datasheets:

PCN Packaging:

16SVPC100M Overview


In order to power systems, 2.49A @ 100kHz ripple current @ High Frequency is needed.This electrical device has an ESR (Equivalent Series Resistance) of 24mOhm.A comp6nt with a pin number of 6 remains in place.For 124.5mA @ 120Hz to be able to fully perform its function, a ripple current @ Low Frequency needs to be provided.It is important to note that the part has a dissipation factor of 12 %.For stable operation, the operating temperature should be -55°C~105°C.

16SVPC100M Features


2.49A @ 100kHz ripple current on a high frequency
a 24mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C


16SVPC100M Applications


There are a lot of Panasonic Electronic Components
16SVPC100M applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
