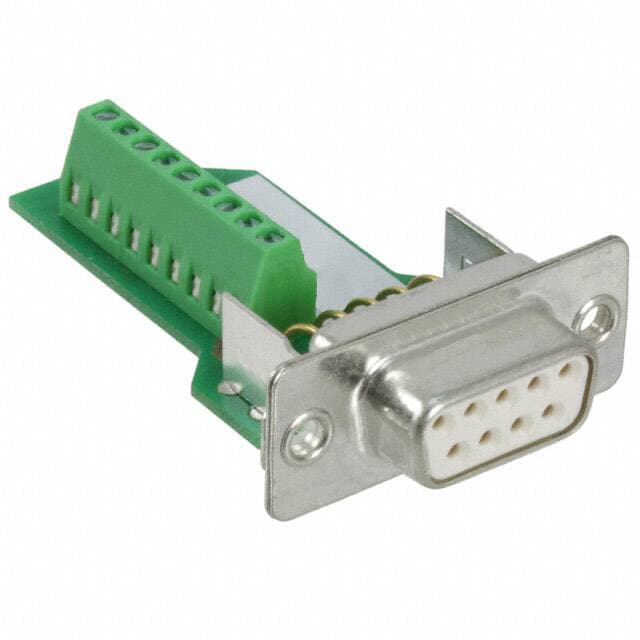

Phoenix 1688395
Phoenix 1688395

Phoenix 1688395

Manufacturer No:

1688395

Manufacturer:

Phoenix

Package:

Module

Description:

PLUSCON Series D-Sub Receptacle, Female Sockets 9-Position Female Signal Terminal Block 1 DE E Free Hanging (In-Line) Copper Alloy Gold

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1688395 information

Phoenix 1688395 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 1688395.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Panel
  • Mounting Type
  • Free Hanging (In-Line)
  • Package / Case
  • Module
  • Number of Pins
  • 9
  • Material
  • Gold, Nickel
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Polyester
  • Housing Material
  • PBT
  • Weight
  • 1.000001g
  • Operating Temperature
  • -20°C~80°C
  • Packaging
  • Bulk
  • Series
  • PLUSCON
  • Published
  • 2003
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Terminal Block
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 9
  • Max Operating Temperature
  • 80°C
  • Min Operating Temperature
  • -20°C
  • Number of Rows
  • 2
  • Gender
  • Female
  • Contact Type
  • Signal
  • Current Rating (Amps)
  • 5A
  • Orientation
  • Right Angle
  • Ingress Protection
  • IP20
  • Depth
  • 41.8mm
  • Current Rating
  • 5A
  • Contact Finish
  • Gold
  • Number of Contacts
  • 9
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Connector Style
  • D-Sub
  • Shell Size, Connector Layout
  • 1 DE E
  • Length
  • 31mm
  • Width
  • 12.6mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free
  • Ratings
  • Dust Tight, IP20, IP67, Waterproof

Download datasheets and manufacturer documentation for Phoenix 1688395.

Datasheets:

1688395 Overview


It comes in Receptacle, Female Sockets packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the PLUSCON Series.Devices with 9 pins are available.You should use it when it's below 80°C.A minimum temperature of -20°C is required for the operation of this device.The packaging with the Module contains a device.Panel is used to mount the part.In this case, the device operates at -20°C~80°C Operating Temperature.

1688395 Features


PLUSCON series


1688395 Applications


There are a lot of Phoenix Contact
1688395 D-Sub Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
