TE Connectivity 1658610-4
Manufacturer No:
1658610-4
Manufacturer:
Package:
Description:

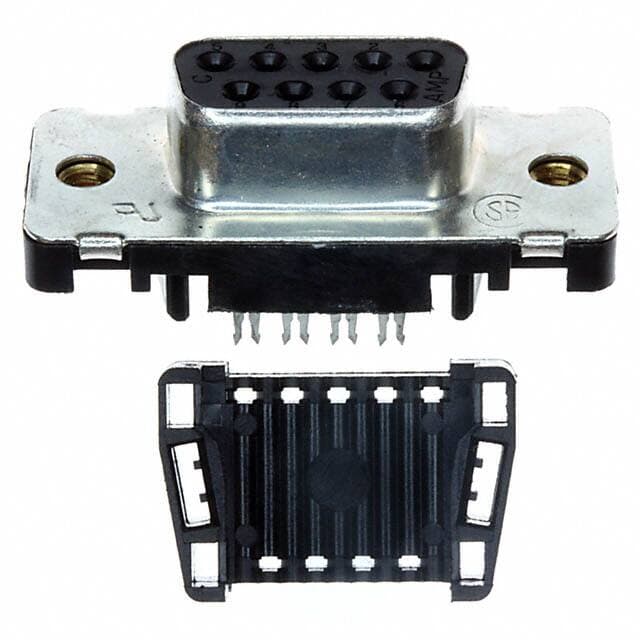

AMPLIMITE HDF-20 Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal IDC, Ribbon Cable 1 DE E Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1658610-4 information
TE Connectivity 1658610-4 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1658610-4.
| Type | Parameter |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 22 hours ago) |
| Factory Lead Time | 5 Weeks |
| Contact Material | Phosphor Bronze |
| Mount | Cable, Free Hanging |
| Mounting Type | Free Hanging (In-Line) |
| Shell Material | Steel |
| Material | Metal |
| Dielectric Material | Thermoplastic |
| Shell Material, Finish | Steel, Tin Plated |
| Operating Temperature | -55°C~105°C |
| Packaging | Bulk |
| Series | AMPLIMITE HDF-20 |
| Published | 1997 |
| JESD-609 Code | e3 |
| Feature | Feed Through |
| Pbfree Code | yes |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | IDC, Ribbon Cable |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Color | Black |
| Number of Rows | 2 |
| Gender | Receptacle |
| Type | Parameter |
|---|---|
| Subcategory | D Type Connectors |
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Contact Type | Signal |
| Mixed Contacts | NO |
| Option | GENERAL PURPOSE |
| Pitch | 2.76mm |
| Total Number of Contacts | 9 |
| Orientation | Right Angle |
| Shielding | Shielded |
| Depth | 12.59mm |
| Current Rating | 1.25A |
| Shell Finish | TIN |
| Reference Standard | UL, CSA |
| Contact Finish | Gold |
| Reliability | COMMERCIAL |
| Approval Agency | CSA, UL |
| Lead Pitch | 2.769mm |
| Empty Shell | NO |
| Wire Gauge | 26-28 AWG, Stranded or Solid |
| Insulation Resistance | 5000000000Ohm |
