Winchester 161VS504EFT
Manufacturer No:
161VS504EFT
Manufacturer:
Package:
Description:
Jack, Female Socket Threaded 50Ohm Tray N Type Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
161VS504EFT information
Winchester 161VS504EFT technical specifications, attributes, parameters and parts with similar specifications to Winchester 161VS504EFT.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Contact Plating
- Nickel
- Mount
- Bulkhead, Edge, Panel
- Mounting Type
- Board Edge, End Launch; Panel Mount
- Mounting Feature
- Bulkhead - Front Side Nut
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Body Material
- Brass
- Center Contact Plating
- Gold
- Center Contact Material
- Brass
- Operating Temperature
- -65°C~165°C
- Packaging
- Tray
- Series
- V-Bite®
- Published
- 2013
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Jack, Female Socket
- Gender
- Male
- Voltage - Rated
- 1500V
- Fastening Type
- Threaded
- Housing Color
- Silver
- Polarity
- Standard
- Impedance
- 50Ohm
- Connector Style
- N Type
- Body Plating
- Nickel
- Frequency (Max)
- 11GHz
- Mating Cycles
- 500
- Contact Termination
- Solder
- Includes

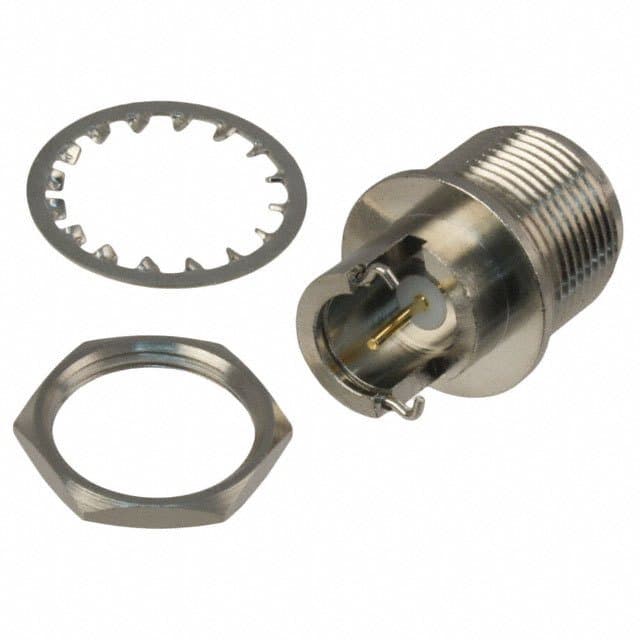

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Insertion Loss
- 0.2dB
- Body Finish
- Nickel
- Shield Termination
- Solder
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Winchester 161VS504EFT.
161VS504EFT Overview
Packaging is in the form of Jack, Female Socket.The mounting type of the device is Board Edge, End Launch; Panel Mount.A Tray case is used to package the product.A product of the V-Bite® Series, it belongs to the range of products of that series.There are 1 ports available for a variety of tasks to be performed on it.Bulkhead, Edge, Panel represents the mounting point for the part.-65°C~165°C Operating Temperature is the default operating temperature for the device.
161VS504EFT Features
V-Bite® series
161VS504EFT Applications
There are a lot of Winchester Interconnect
161VS504EFT Coaxial Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
