Winchester 161V504EFT

Manufacturer No:

161V504EFT

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Threaded 50Ohm Tray N Type Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

161V504EFT information

Winchester 161V504EFT technical specifications, attributes, parameters and parts with similar specifications to Winchester 161V504EFT.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Board Edge, End Launch; Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Operating Temperature
-65°C~165°C

Packaging
Tray

Series
V-Bite®

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
1500V

Fastening Type
Threaded

Ingress Protection
Weatherproof

Reach Compliance Code
unknown

Housing Color
Silver

Impedance
50Ohm

Connector Style
N Type

Number of Ports
1

Frequency (Max)
11GHz

Mating Cycles
500

Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut

Insertion Loss
0.2dB

Body Finish
Nickel

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 161V504EFT.

Datasheets:

winchesterinterconnect-861v509er6-datasheets-7079.pdf

161V504EFT Overview

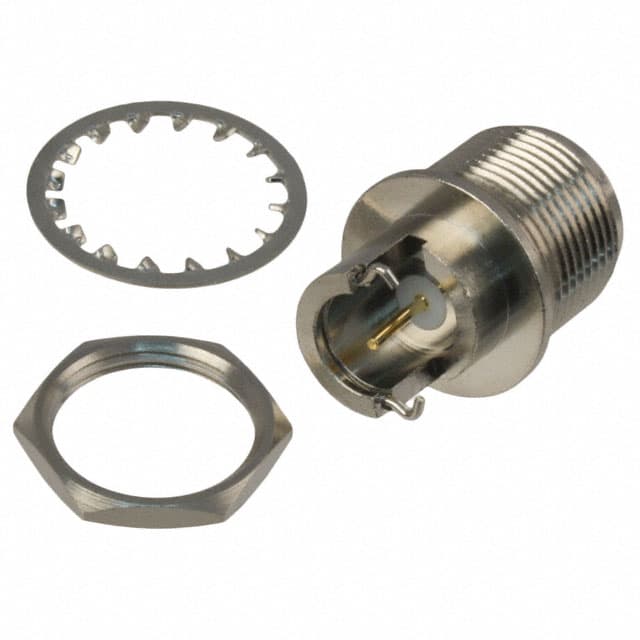

This product is packaged in a Jack, Female Socket box.There is a Board Edge, End Launch; Panel Mount mounting type for the device.This product is packaged in a case marked Tray.Product number V-Bite® belongs to the V-Bite® Series.There are 1 ports available for managing a variety of tasks on this device.This device operates at a temperature of -65°C~165°C.

161V504EFT Features

V-Bite® series

161V504EFT Applications

There are a lot of Winchester Interconnect
161V504EFT Coaxial Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
