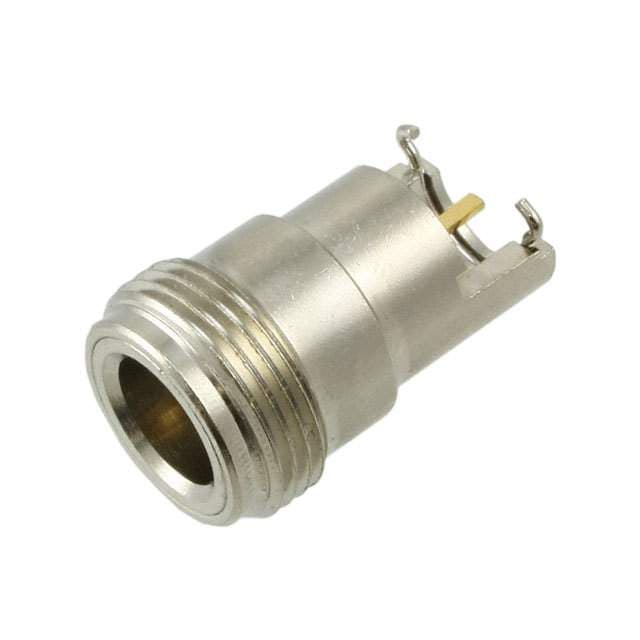

Winchester 161V504E

Manufacturer No:

161V504E

Manufacturer:

Winchester

Package:

Description:

Jack, Female Socket Threaded 50Ohm Tray N Type Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

161V504E information

Winchester 161V504E technical specifications, attributes, parameters and parts with similar specifications to Winchester 161V504E.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Board Edge, End Launch

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Operating Temperature
-65°C~165°C

Packaging
Tray

Series
V-Bite®

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
1500V

Fastening Type
Threaded

Ingress Protection
Weatherproof

Reach Compliance Code
unknown

Housing Color
Silver

Impedance
50Ohm

Connector Style
N Type

Number of Ports
1

Frequency (Max)
11GHz

Mating Cycles
500

Contact Termination
Solder

Body Finish
Nickel

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Winchester 161V504E.

Datasheets:

winchesterinterconnect-861v509er6-datasheets-7079.pdf

161V504E Overview

It comes in Jack, Female Socket packaging.There is a mounting type of Board Edge, End Launch for this device.It is necessary to use a Tray case for packaging the product.This product is part of the V-Bite® Series.A variety of tasks can be managed through its 1 ports.In this case, the device operates at -65°C~165°C Operating Temperature.

161V504E Features

V-Bite® series

161V504E Applications

There are a lot of Winchester Interconnect
161V504E Coaxial Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
