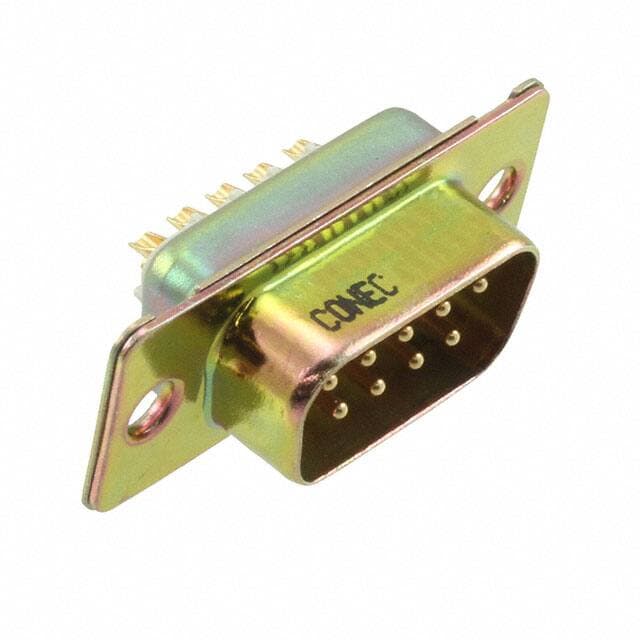

Conec 161A10019X
Manufacturer No:
161A10019X
Manufacturer:
Package:
Description:
161A Series D-Sub Plug, Male Pins 9-Position Male Signal Solder Cup 1 DE E Free Hanging (In-Line) Copper Alloy Gold Steel, Yellow Chromate Plated Zinc
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
161A10019X information
Conec 161A10019X technical specifications, attributes, parameters and parts with similar specifications to Conec 161A10019X.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Material
- Copper Alloy
- Mount
- Free Hanging
- Mounting Type
- Free Hanging (In-Line)
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Housing Material
- Polyester
- Shell Material, Finish
- Steel, Yellow Chromate Plated Zinc
- Operating Temperature
- -55°C~125°C
- Packaging
- Bulk
- Series
- 161A
- Published
- 2009
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Termination
- Solder Cup
- Connector Type
- Plug, Male Pins
- Number of Positions
- 9
- Color
- Black
- Number of Rows
- 2
- Gender
- Male
- Subcategory
- D Type Connectors
- Contact Type
- Signal
- Total Number of Contacts
- 9
- Orientation
- Straight
- Depth
- 14.52mm
- Shell Finish
- ZINC/YELLOW CHROMATE
- Reference Standard
- UL
- Contact Finish
- Gold
- Reliability
- COMMERCIAL
- Rated Current (Signal)
- 5A
- Wire Gauge
- 20 AWG
- Insulation Resistance
- 5000000000Ohm
- Flange Feature
- Housing/Shell (Unthreaded)
- Body/Shell Style
- RECEPTACLE
- Max Supply Voltage
- 125V
- Connector Style
- D-Sub
- Number of Ports
- 1
- Insertion Force-Max
- 3.336 N
- Withdrawl Force-Min
- 3.336 N
- Shell Size, Connector Layout
- 1 DE E
- Contact Design
- PREASSEM CONN
- Length
- 31.19mm
- Contact Finish Thickness
- 8.00?in 0.203?m
- Material Flammability Rating
- UL94 V-0
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Conec 161A10019X.
Environmental Information:
161A10019X Overview
It comes in Plug, Male Pins packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 161A Series.A variety of tasks can be managed through its 1 ports.Free Hanging is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
161A10019X Features
161A series
161A10019X Applications
There are a lot of Conec
161A10019X D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
