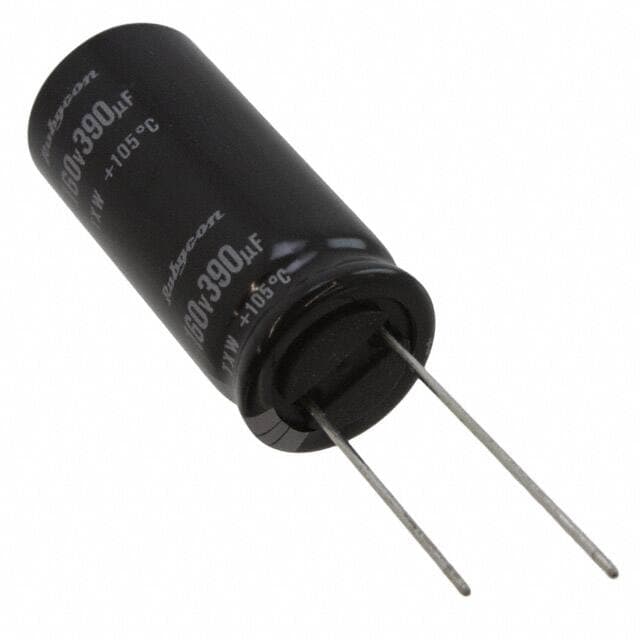

Rubycon 160TXW390MEFC16X35
Rubycon 160TXW390MEFC16X35

Rubycon 160TXW390MEFC16X35

Manufacturer No:

160TXW390MEFC16X35

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

TXW 390?F Capacitor ±20% Bulk Through Hole 1.34A 0.630Dia 16.00mm -40°C~105°C Polar 7.493mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

160TXW390MEFC16X35 information

Rubycon 160TXW390MEFC16X35 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 160TXW390MEFC16X35.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • TXW
  • Published
  • 2012
  • Size / Dimension
  • 0.630Dia 16.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • HTS Code
  • 8532.24.0060
  • Capacitance
  • 390?F
  • Voltage - Rated DC
  • 160V
  • Lead Pitch
  • 7.493mm
  • Lead Spacing
  • 0.295 7.50mm
  • Lifetime @ Temp
  • 12000 Hrs @ 105°C
  • Ripple Current
  • 1.34A
  • Polarization
  • Polar
  • Life (Hours)
  • 12000 hours
  • Ripple Current @ High Frequency
  • 1.87A @ 100kHz
  • Diameter
  • 16mm
  • Height
  • 35mm
  • Height Seated (Max)
  • 1.476 37.50mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 160TXW390MEFC16X35.

Datasheets:

160TXW390MEFC16X35 Overview


Full charge should result in a ripple current of 1.87A @ 100kHz.If the charge is low, ripple current is 1.34A @ 120Hz.Keep your seated height below 1.476 37.50mm.A voltage of 160V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.

160TXW390MEFC16X35 Features


the ripple current is 1.87A @ 100kHz.
the ripple current is 1.34A @ 120Hz.
voltage - Rated DC of 160V
an operating temperature of -40°C~105°C


160TXW390MEFC16X35 Applications


There are a lot of Rubycon
160TXW390MEFC16X35 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
