3M 159120-5002
3M 159120-5002

3M 159120-5002

Manufacturer No:

159120-5002

Manufacturer:

3M

Package:

Description:

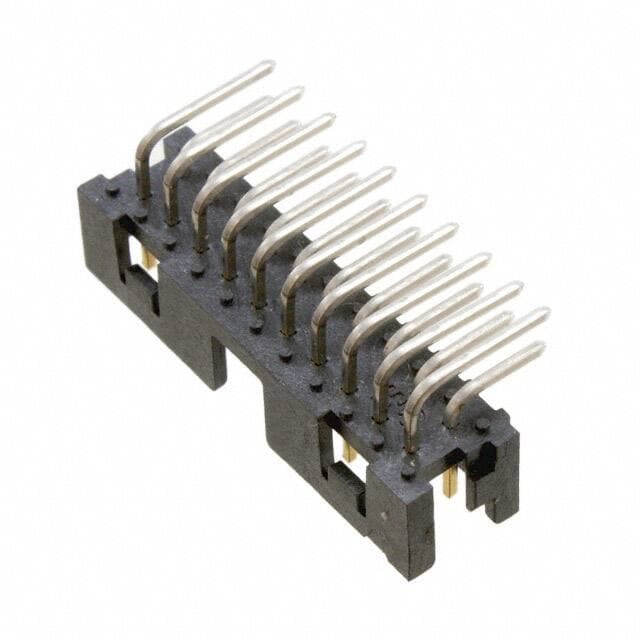

159 Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 20-Position Board to Cable/Wire 0.241 6.13mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

159120-5002 information

3M 159120-5002 technical specifications, attributes, parameters and parts with similar specifications to 3M 159120-5002.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Housing Material
  • Polymer
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tray
  • Series
  • 159
  • Published
  • 2010
  • Feature
  • Keying Slot
  • Part Status
  • Last Time Buy
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 20
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Voltage - Rated
  • 150V
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 1.25A
  • Pitch
  • 2mm
  • Orientation
  • Right Angle
  • Insulation Height
  • 0.241 6.13mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.112 2.84mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number of Contacts
  • 20
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.142 3.61mm
  • Contact Gender
  • Male
  • Lead Length
  • 2.84mm
  • Mating Post Length
  • 3.89mm
  • Contact Finish Thickness - Mating
  • 30.0?in 0.76?m
  • Contact Finish Thickness - Post
  • 200.0?in 5.08?m
  • Material Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for 3M 159120-5002.

Datasheets:

PCN Obsolescence/ EOL:

ConflictMineralStatement:

159120-5002 Overview


Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 159 Series.If the temperature is below 105°C, it's best to use it.-55°C is the minimum temperature for this device.Several benefits come from the Keying Slot feature.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.

159120-5002 Features


159 series


159120-5002 Applications


There are a lot of 3M
159120-5002 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
