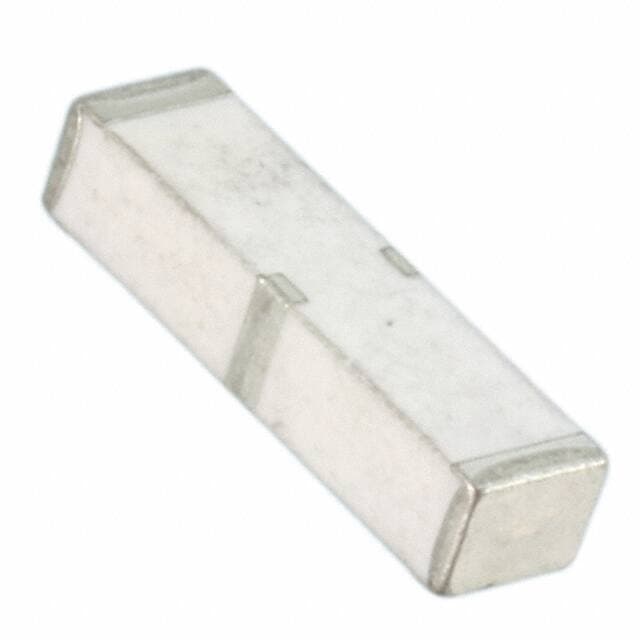

Johanson Technology Inc. 1575AT54A0010E
Johanson Technology Inc. 1575AT54A0010E

Johanson Technology Inc. 1575AT54A0010E

Manufacturer No:

1575AT54A0010E

Manufacturer:

Johanson Technology Inc.

Package:

Description:

2 Bands Chip UHF 1GHz~2GHz Surface Mount Solder 1.575GHz 1.602GHz 1.3dBi Tape & Reel (TR) 0.126 3.20mm GLONASS, GPS

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1575AT54A0010E information

Johanson Technology Inc. 1575AT54A0010E technical specifications, attributes, parameters and parts with similar specifications to Johanson Technology Inc. 1575AT54A0010E.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2016
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Applications
  • GLONASS, GPS
  • Power Rating
  • 2W
  • Max Power Dissipation
  • 2W
  • Frequency
  • 1.602GHz
  • Impedance
  • 50Ohm
  • Power - Max
  • 2W
  • Gain
  • 1.3dBi
  • Frequency Range
  • 1.575GHz~1.605GHz
  • RF Family/Standard
  • Navigation
  • Antenna Type
  • Chip
  • Number of Bands
  • 2
  • Frequency Group
  • UHF 1GHz~2GHz
  • Frequency (Center/Band)
  • 1.575GHz 1.602GHz
  • Return Loss
  • -9.5dB
  • Length
  • 15mm
  • Width
  • 4mm
  • Height (Max)
  • 0.126 3.20mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Johanson Technology Inc. 1575AT54A0010E.

Datasheets:

1575AT54A0010E Overview


RF Antennass can be carried out with Surface Mount.Packaging for the RF modulator consists of Tape & Reel (TR) solid enclosures.Its Surface Mount qualifies it for most RF ics.The RF Antennas should operate at -40°C degrees according to test statistics.During operation, the RF Antennas should not be exposed to a temperature above 85°C.

1575AT54A0010E Features


With Surface Mount
Above 85°C degrees Celsius


1575AT54A0010E Applications


There are a lot of Johanson Technology Inc.
1575AT54A0010E RF Antennas applications.


  • Cosmic noise
  • Generators
  • Lightings
  • Rectifiers
  • Inverters
  • Satellites
  • Transmission
  • Cellphones
  • Laptops
  • Marine Navigation
