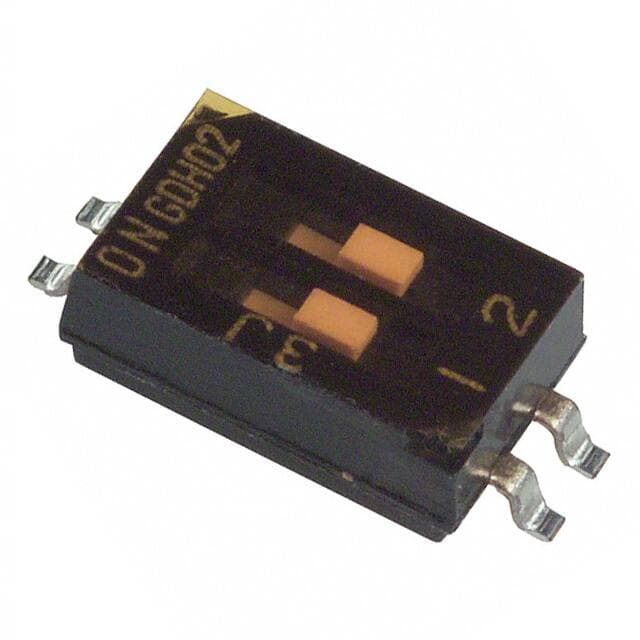

TE Connectivity 1571983-1

Manufacturer No:

1571983-1

Manufacturer:

TE Connectivity

Package:

DIP

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1571983-1 information

TE Connectivity 1571983-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1571983-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
29 Weeks

Contact Material
Copper Alloy

Mount
PCB, Surface Mount

Mounting Type
Surface Mount

Package / Case
DIP

Housing Material
Polyphenylene

Body Material
Polyphenylene Sulfide (PPS)

Actuator Material
Polymer

Operating Temperature
-30°C~85°C

Packaging
Tube

Series
GDH

Published
2006

Feature
Tape Seal

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Gull Wing

ECCN Code
EAR99

Type
Switch

Number of Positions
2

Voltage - Rated
24VDC

HTS Code
8536.50.90.65

Voltage - Rated DC
24V

Pitch
0.050 1.27mm Half

Terminal Pitch
1.27mm

Depth
8.13mm

Current Rating
100mA

Contact Finish
Gold

Termination Style
Gull Wing

Actuator Type
Slide (Standard)

Housing Color
Black

Circuit
SPST

Contact Resistance
100mOhm

Insulation Resistance
100MOhm

Row Spacing
7.59 mm

ELV
Compliant

Max Current Rating
25mA

Dielectric Withstanding Voltage
300VAC V

Electrical Life
1,000 Cycles

Number of Poles
2

Max Voltage Rating (DC)
24V

Mechanical Life
1,000 Cycles

Contact Current Rating
25mA

Number of Switch Sections
2

Contact Function
ON-OFF

Washable
Yes

Actuator Level
Flush, Recessed
