3M 155250-5302-RB
3M 155250-5302-RB

3M 155250-5302-RB

Manufacturer No:

155250-5302-RB

Manufacturer:

3M

Package:

Description:

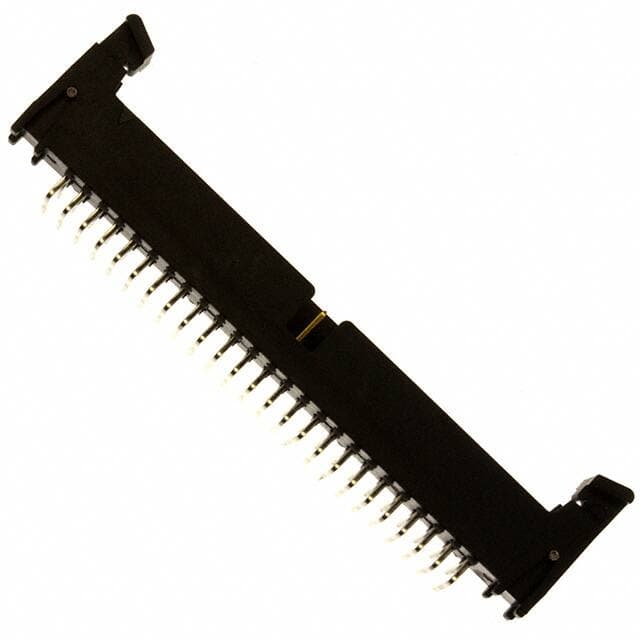

1552 Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 50-Position Board to Cable/Wire 0.247 6.28mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

155250-5302-RB information

3M 155250-5302-RB technical specifications, attributes, parameters and parts with similar specifications to 3M 155250-5302-RB.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Housing Material
  • Polymer
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tray
  • Series
  • 1552
  • Published
  • 2007
  • Feature
  • Keying Slot
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 50
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Latch Lock/Eject Hooks
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Pitch
  • 2.0066mm
  • Insulation Height
  • 0.247 6.28mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.112 2.84mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 2mm
  • Number of Contacts
  • 50
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.150 3.81mm
  • Contact Gender
  • Male
  • Lead Length
  • 2.84mm
  • Mating Post Length
  • 3.8mm
  • Contact Finish Thickness - Mating
  • 30.0?in 0.76?m
  • Contact Finish Thickness - Post
  • 200.0?in 5.08?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for 3M 155250-5302-RB.

Datasheets:

ConflictMineralStatement:

155250-5302-RB Overview


Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the 1552 Series.Several benefits come from the Keying Slot feature.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.

155250-5302-RB Features


1552 series


155250-5302-RB Applications


There are a lot of 3M
155250-5302-RB Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
