Conec 15-000703
Conec 15-000703

Conec 15-000703

Manufacturer No:

15-000703

Manufacturer:

Conec

Package:

Description:

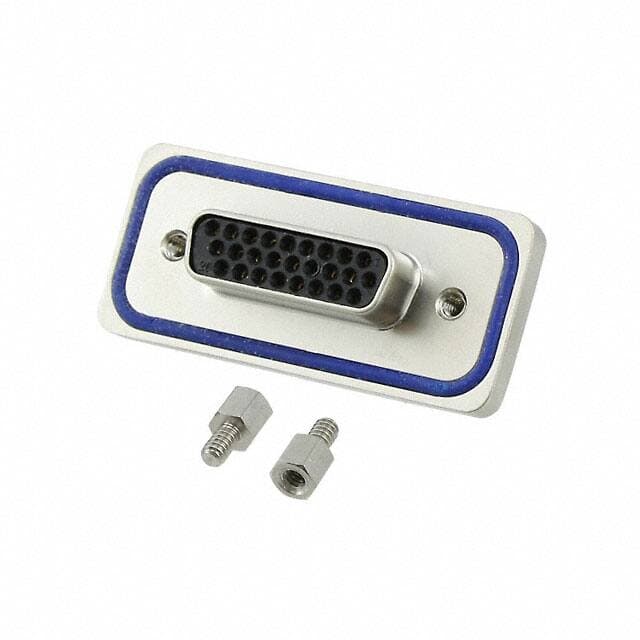

D-Sub, High Density Receptacle, Female Sockets 26-Position Female Signal Solder Cup 2 DA A High Density Panel Mount Copper Alloy Gold Zinc Die Cast, Nickel Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

15-000703 information

Conec 15-000703 technical specifications, attributes, parameters and parts with similar specifications to Conec 15-000703.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Panel
  • Mounting Type
  • Panel Mount
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • PBT
  • Shell Material, Finish
  • Zinc Die Cast, Nickel Plated
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Published
  • 2009
  • JESD-609 Code
  • e4
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder Cup
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 26
  • Color
  • Black
  • Number of Rows
  • 3
  • Gender
  • Female
  • Voltage - Rated
  • 60V
  • Subcategory
  • D Type Connectors
  • Contact Type
  • Signal
  • Total Number of Contacts
  • 26
  • Ingress Protection
  • IP67 - Dust Tight, Waterproof
  • Shell Finish
  • NICKEL OVER COPPER
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 1.878 inch
  • Rated Current (Signal)
  • 3A
  • Contact Resistance
  • 10mOhm
  • Wire Gauge
  • 22 AWG
  • Flange Feature
  • Mating Side, Female Screwlock (4-40)
  • Dielectric Withstanding Voltage
  • 1000VDC V
  • Connector Style
  • D-Sub, High Density
  • Shell Size, Connector Layout
  • 2 DA A High Density
  • Contact Design
  • PREASSEM CONN
  • Contact Finish Thickness
  • 8.00?in 0.203?m
  • Plating Thickness
  • 8?in
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • Dust Tight, IP67, Waterproof

Download datasheets and manufacturer documentation for Conec 15-000703.

Datasheets:

Environmental Information:

15-000703 Overview


The packaging contains Receptacle, Female Sockets.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.Part Panel is mounted to the part.As a result, the device runs at -25°C~105°C Operating Temperature.

15-000703 Features




15-000703 Applications


There are a lot of Conec
15-000703 D-Sub Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
