Echelon Corporation 14212R-500
Echelon Corporation 14212R-500

Echelon Corporation 14212R-500

Manufacturer No:

14212R-500

Manufacturer:

Echelon Corporation

Package:

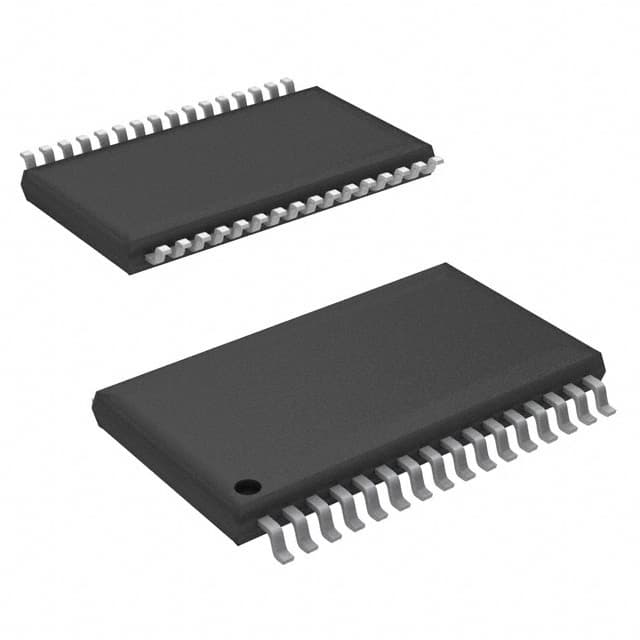

32-SOIC (0.450, 11.40mm Width)

Description:

32 Terminations Receivers 1 Functions

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

14212R-500 information

Echelon Corporation 14212R-500 technical specifications, attributes, parameters and parts with similar specifications to Echelon Corporation 14212R-500.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 32-SOIC (0.450, 11.40mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tube
  • JESD-609 Code
  • e4
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 32
  • Type
  • Transceiver
  • Terminal Finish
  • NICKEL PALLADIUM GOLD
  • Voltage - Supply
  • 5V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 245
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • JESD-30 Code
  • R-PDSO-G32
  • Max Supply Current
  • 75mA
  • Number of Receivers
  • 1
  • Length
  • 20.447mm
  • Height Seated (Max)
  • 2.9972mm
  • Radiation Hardening
  • No

Download datasheets and manufacturer documentation for Echelon Corporation 14212R-500.

Datasheets:

14212R-500 Description


The 14212R-500 is a Free Topology Smart transceiver that integrates a Neuron® 3120 or Neuron 3150 network processor core, respectively, with a free topology twisted pair transceiver to create a low-cost, smart transceiver on a chip.



14212R-500 Features


  • Combines an ANSI/CEA 709.3-1999 compliant free topology twisted pair transceiver with a Neuron 3120 or Neuron 3150 network processor core

  • Supports polarity insensitive free topology star, daisy chain, bus, loop, or mixed topology wiring

  • 78 kilobits per second-bit rate for distances up to 500 meters in free topology or 2700 meters in bus topology with double terminations

  • High-performance Neuron network processor core enables concurrent processing of application code and network packets (40MHz maximum for FT 3120 smart transceiver, 20MHz maximum for FT 3150 smart transceiver)

  • 4Kbytes of embedded EEPROM for application code and configuration data on the FT 3120 smart transceiver and 0.5Kbytes of embedded EEPROM for configuration data on the FT 3150 smart transceiver

  • Interface for external memory for devices with larger memory requirements (FT 3150 smart transceiver only)

  • 2Kbytes of embedded RAM for buffering network data and network variables

  • 11 I/O pins with 34 programmable standard I/O modes minimizing external interface circuitry

  • Unique 48-bit Neuron ID in every device for network installation and management

  • Compact external transformer with patent pending architecture providing exceptional immunity from magnetic interference and high-frequency common mode noise

  • Compatible with TP/FT-10 channels using FTT-10 and/or FTT-10A Free Topology Transceivers and, with suitable DC blocking capacitors, LPT-10 Link Power Transceivers

  • Communications parameters preprogrammed for the TP/FT-10 channel at 10MHz



14212R-500 Applications


  • Industrial

  • General Uses
