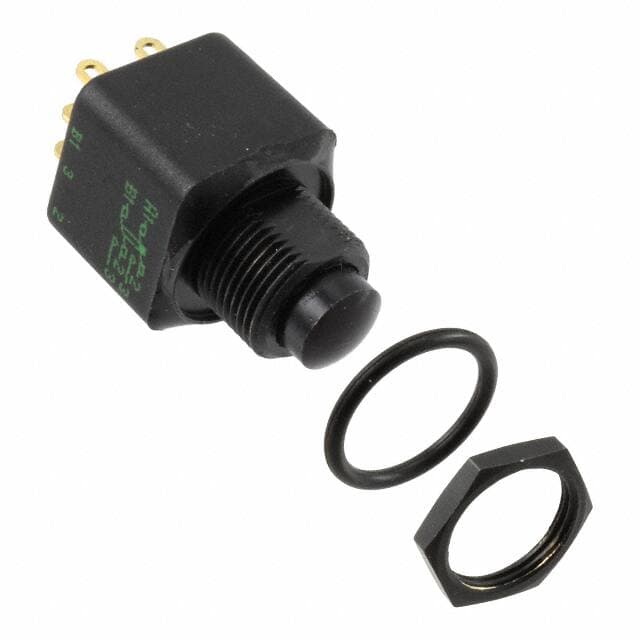

APEM 134454X778
Manufacturer No:
134454X778
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
134454X778 information
APEM 134454X778 technical specifications, attributes, parameters and parts with similar specifications to APEM 134454X778.
- Type
- Parameter
- Factory Lead Time
- 9 Weeks
- Contact Plating
- Gold
- Mount
- Bushing, Panel
- Mounting Type
- Panel Mount, Rear
- Insulation Material
- DIALLYL PHTHALATE
- Housing Material
- POLYBUTYLENE TEREPHTHALATE
- Actuator Material
- Brass
- Operating Temperature
- -40°C~85°C
- Packaging
- Bulk
- Series
- 13000
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Type
- Standard
- HTS Code
- 8536.50.90.31
- Voltage - Rated DC
- 28V
- Current Rating (Amps)
- 4A DC
- Orientation
- Straight
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Depth
- 16mm
- Current Rating
- 4A
- Voltage - Rated AC
- 125V
- Actuator Type
- Round, Plunger
- Circuit
- DPDT
- Switch Function
- On-Mom
- Panel Cutout Dimensions
- Circular - 12.00mm Dia
- Contact Resistance
- 10mOhm
- Insulation Resistance
- 1000000000Ohm
- Color - Actuator/Cap
- Silver
- Contact Current(DC)-Max
- 4A
- Sealing
- EPOXY TERMINAL SEALED; IP67; SPLASH PROOF
- Max Voltage Rating (AC)
- 250V
- Max Current Rating
- 4A
- Dielectric Withstanding Voltage
- 2000VRMS V
- Electrical Life
- 10,000 Cycles
- Max Voltage Rating (DC)
- 28V
- Mechanical Life
- 150000 cycles
- Contact Current Rating
- 4A
- Contact Current(AC)-Max
- 4A
- Contact (AC) Max Rating R Load
- 4A@125VAC
- Hole Diameter
- 12 mm
- Contact (DC) Max Rating R Load
- 4A@28VDC
- Contact Function
- (ON)-OFF
- Bushing Diameter
- 0.469 inch
