2PAI SEMI π130U30

Manufacturer No:

π130U30

Manufacturer:

2PAI SEMI

Package:

Description:

Enhanced ESD, 3.0 kV rms/5.0 kV rms 150Kbps Triple-Channel Digital Isolators

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

π130U30 information

2PAI SEMI π130U30 technical specifications, attributes, parameters and parts with similar specifications to 2PAI SEMI π130U30.

Type
Parameter

Download datasheets and manufacturer documentation for 2PAI SEMI π130U30.

Datasheet:

44ba2159-44c1-4fa5-b14f-e707f18aaf65.pdf

The π1xxxxx is a 2PaiSemi digital isolators product family that
includes over hundreds of digital isolator products. By using
maturated standard semiconductor CMOS technology and 2PaiSemi
iDivider® technology, these isolation components provide
outstanding performance characteristics and reliability superior to
alternatives such as optocoupler devices and other integrated
isolators.
Intelligent voltage divider technology (iDivider® technology) is a new
generation digital isolator technology invented by 2PaiSemi. It uses
the principle of capacitor voltage divider to transmit voltage signal
directly cross the isolator capacitor without signal modulation and
demodulation.

The π1xxxxx isolator data channels are independent and are
available in a variety of configurations with a withstand voltage
rating of 1.5 kV rms to 5.0 kV rms and the data rate from DC up to
600Mbps (see the Ordering Guide). The devices operate with the
supply voltage on either side ranging from 3.0 V to 5.5 V, providing
compatibility with lower voltage systems as well as enabling voltage
translation functionality across the isolation barrier. The fail-safe
state is available in which the outputs transition to a preset state
when the input power supply is not applied.

FEATURES

Ultra-low power consumption (150Kbps): 0.62mA/Channel
High data rate: 150kbps
High common-mode transient immunity: 250 kV/µs
High robustness to radiated and conducted noise
Isolation voltages:
π13xx3x: AC 3000Vrms
π13xx6x: AC 5000Vrms
High ESD rating:
ESDA/JEDEC JS-001-2017
Human body model (HBM) ±8kV
Safety and regulatory approvals：
UL certificate number: E494497
3000Vrms/5000Vrms for 1 minute per UL 1577
CSA Component Acceptance Notice 5A
VDE certificate number: 40053041/40052896
DIN VDE V 0884-11:2017-01
VIORM =565V peak/1200V peak
CQC certification per GB4943.1-2011
3 V to 5.5 V level translation
Wide temperature range: -40°C to 125°C

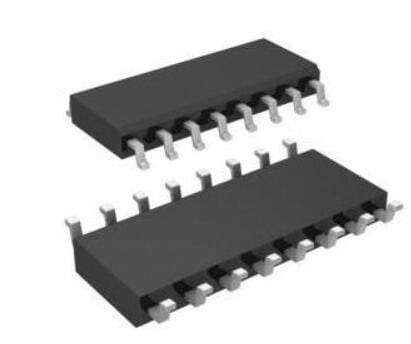

RoHS-compliant, NB SOIC-16, WB SOIC-16 and
SSOP16 package

APPLICATIONS

General-purpose multichannel isolation
Industrial field bus isolation
Isolation Industrial automation systems
Isolated switch mode supplies
Isolated ADC, DAC
Motor control
