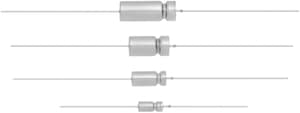

VISHAY 13017-05KS

Manufacturer No:

13017-05KS

Manufacturer:

VISHAY

Package:

Metal

Description:

100?F 10% 125°C-Max -55°C-Min 1.3Ohm 2-Termination POLARIZED TANTALUM (WET) 0.001mA Bulk Metal

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

13017-05KS information

VISHAY 13017-05KS technical specifications, attributes, parameters and parts with similar specifications to VISHAY 13017-05KS.

Type
Parameter

Package / Case
Metal

Surface Mount
NO

Terminal Shape
WIRE

Mounting Feature
THROUGH HOLE MOUNT

Dielectric Material
TANTALUM (WET)

Packaging
Bulk

Tolerance
10%

JESD-609 Code
e0

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Capacitance
100?F

Capacitor Type
TANTALUM CAPACITOR

ESR (Equivalent Series Resistance)
1.3Ohm

Polarity
POLARIZED

Rated (DC) Voltage (URdc)
30V

Leakage Current
0.001mA

Ripple Current
468mA

Diameter
5.56mm

Length
11.51mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY 13017-05KS.

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

datasheets:

vishay-1301702ks-datasheets-5245.pdf

13017-05KS Overview

The capacitor's ripple current is set to 468mA.Equivalent series resistance (ESR), also known as internal resistance, is a value representing the loss of useful energy in a simple electronic circuit consisting of a resistor and an ideal (perfect) capacitor, and its resistance is 1.3Ohm.The leakage current of this capacitor is 0.001mA.

13017-05KS Features

468mA is the ripple current of the capacitor
a leakage current of 0.001mA in this capacitor

13017-05KS Applications

There are a lot of Vishay
13017-05KS applications of tantalum capacitors.

Industrial
Avionics / military / space
Telecom infrastructure
Consumer
Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
