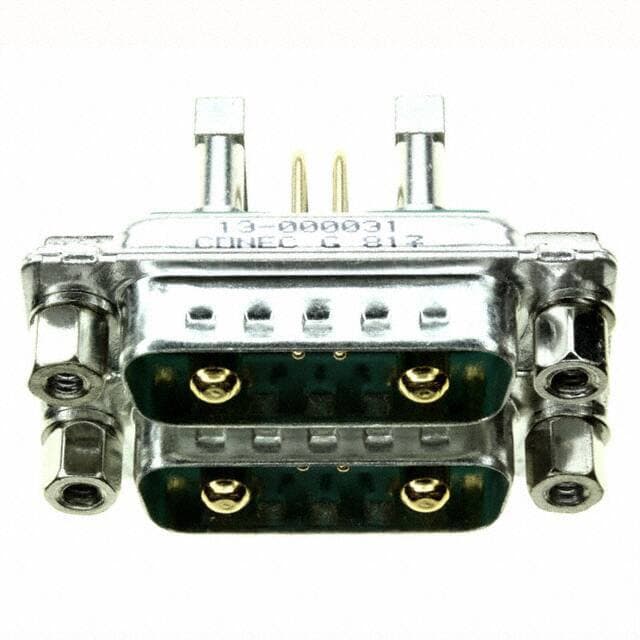

Conec 13-000031
Manufacturer No:
13-000031
Manufacturer:
Package:
Description:
MicroTCA? Series D-Sub, Combo - Stacked Plug, Male Pins 7 (5 + 2 Power) x 2-Position Signal and Power Solder 2 DA A - 7W2; 2 DA A - 7W2 Board Edge, Surface Mount, Right Angle Copper Alloy Gold Steel, Tin Plated
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
13-000031 information
Conec 13-000031 technical specifications, attributes, parameters and parts with similar specifications to Conec 13-000031.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Contact Material
- Copper Alloy
- Mount
- Surface Mount
- Mounting Type
- Board Edge, Surface Mount, Right Angle
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Housing Material
- PBT
- Shell Material, Finish
- Steel, Tin Plated
- Packaging
- Tray
- Series
- MicroTCA?
- Published
- 2007
- Feature
- Board Lock, Grounding Indents, Mounting Brackets
- Part Status
- Active
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Plug, Male Pins
- Number of Positions
- 7 (5 + 2 Power) x 2
- Color
- Green
- Number of Rows
- 2, 2
- Voltage - Rated
- 250V
- Additional Feature
- ROHS COMPLIANT, WITH WASHER
- HTS Code
- 8536.69.40.30
- Subcategory
- D Type Connectors
- Contact Type
- Signal and Power
- Mixed Contacts
- YES
- Total Number of Contacts
- 14
- Ingress Protection
- IP20
- Current Rating
- 7.5A
- Shell Finish
- TIN OVER NICKEL
- Number of Conductors
- TWO
- Reference Standard
- UL
- Contact Finish
- Gold
- Reliability
- COMMERCIAL
- Body Length or Diameter
- 1.544 inch
- Body Breadth
- 1.059 inch
- Operating Temperature (Min)
- -55°C
- Body Depth
- 0.692 inch
- Contact Resistance
- 8mOhm
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Body/Shell Style
- RECEPTACLE
- Connector Style
- D-Sub, Combo - Stacked
- Shell Size, Connector Layout
- 2 DA A - 7W2; 2 DA A - 7W2
- Backset Spacing
- 0.450 (11.43mm)
- Contact Arrangement
- S5P2; S5P2
- Contact Finish Thickness
- 30.0?in 0.76?m
- Plating Thickness
- 30?in
- Material Flammability Rating
- UL94 V-0
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Conec 13-000031.
Datasheets:
Environmental Information:
13-000031 Overview
A Plug, Male Pins package is included with it.Board Edge, Surface Mount, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MicroTCA? Series.Furthermore, there are other features such as ROHS COMPLIANT, WITH WASHER, to name a few.In many ways, Board Lock, Grounding Indents, Mounting Brackets makes it more powerful.By Surface Mount, the part is mounted.
13-000031 Features
MicroTCA? series
13-000031 Applications
There are a lot of Conec
13-000031 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
