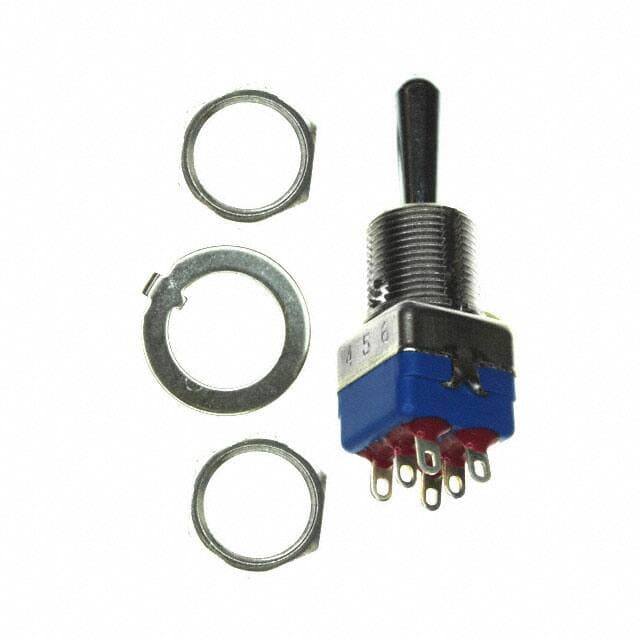

12147A information
APEM 12147A technical specifications, attributes, parameters and parts with similar specifications to APEM 12147A.
- Type
- Parameter
- Factory Lead Time
- 5 Weeks
- Contact Material
- Silver
- Mount
- Panel
- Mounting Type
- Panel Mount
- Housing Material
- Brass
- Actuator Material
- Brass, Chrome Plated
- Operating Temperature
- -40°C~85°C
- Packaging
- Bulk
- Series
- 12000
- Feature
- Epoxy Sealed Terminals
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Voltage - Rated DC
- 30V
- Current Rating (Amps)
- 4A AC/DC
- Orientation
- Straight
- Current Rating
- 4A
- Termination Style
- Solder Lug
- Voltage - Rated AC
- 125V
- Actuator Type
- Standard Round
- Circuit
- DPDT
- Switch Function
- Mom-Off-Mom
- Panel Cutout Dimensions
- Circular - 12.50mm Dia
- Insulation Resistance
- 1000000000Ohm
- Contact Current(DC)-Max
- 4A
- Max Voltage Rating (AC)
- 250V
- Dielectric Withstanding Voltage
- 2500VAC V
- Electrical Life
- 50,000 Cycles
- Illumination
- Non-Illuminated
- Max Voltage Rating (DC)
- 30V
- Mechanical Life
- 100000 cycles
- Switch Type
- TOGGLE SWITCH
- Illumination Type
- Illuminated, Non-Illuminated
- Bushing Thread
- 15/32-32
- Contact (DC) Max Rating R Load
- 4A@30VDC
- Contact Function
- (ON)-OFF-(ON)
- Bushing Length
- 0.429 inch
- Body Height
- 13.6906mm
- Length - Termination
- 0.196 inch
- Actuator Length
- 17.30mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for APEM 12147A.
