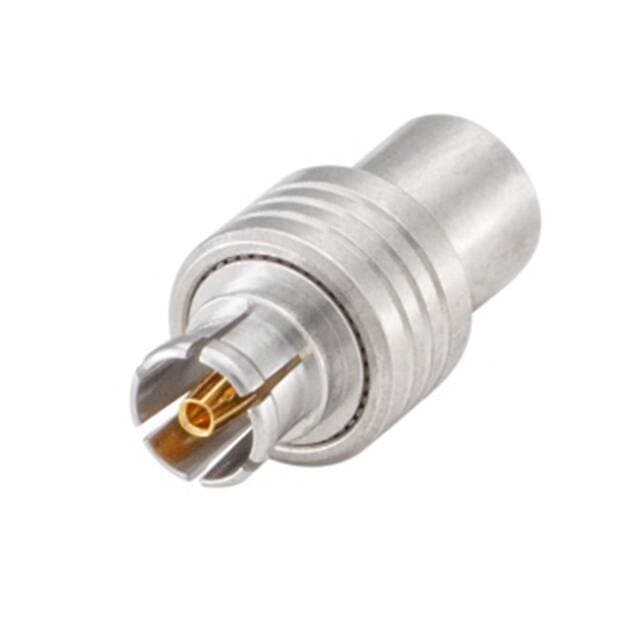

Rosenberger 119K101-272N5

Manufacturer No:

119K101-272N5

Manufacturer:

Rosenberger

Package:

Description:

Jack, Female Socket Snap-On 50Ohm PSMP Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

119K101-272N5 information

Rosenberger 119K101-272N5 technical specifications, attributes, parameters and parts with similar specifications to Rosenberger 119K101-272N5.

Type
Parameter

Factory Lead Time
11 Weeks

Mounting Type
Free Hanging (In-Line)

Insulation Material
PEEK/PTFE/LCP

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Beryllium Copper

Center Contact Plating
Gold

Center Contact Material
Beryllium Copper

Panel Mount
NO

Operating Temperature
-65°C~165°C

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Jack, Female Socket

Voltage - Rated
480V

Additional Feature
VSWR MAX AT 6 GHZ

Fastening Type
Snap-On

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Housing Color
Silver

Connector Style
PSMP

Number of Ports
1

Frequency (Max)
10GHz

Contact Termination
Solder

Insertion Loss
0.09 dB

Body Finish
White Bronze

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rosenberger 119K101-272N5.

Datasheets:

rosenberger-119k101272n5-datasheets-4233.pdf

119K101-272N5 Overview

The packaging is Jack, Female Socket.Mounting type Free Hanging (In-Line) is selected for the device.Besides that, there's also VSWR MAX AT 6 GHZ, to name a few.You can manage a bunch of stuff with its 1 ports.Device runs in -65°C~165°C operating temperature.

119K101-272N5 Features

119K101-272N5 Applications

There are a lot of Rosenberger
119K101-272N5 Coaxial Connectors applications.

Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
