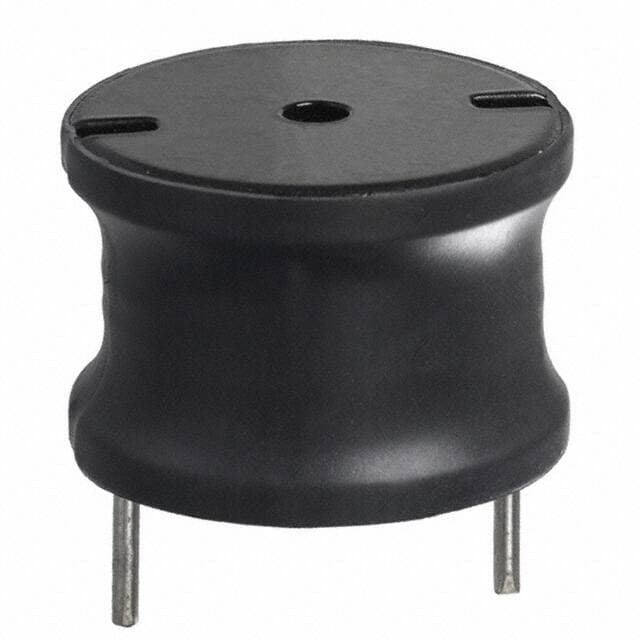

BOURNS 1140-101K-RC

Manufacturer No:

1140-101K-RC

Manufacturer:

BOURNS

Package:

Radial, Vertical Cylinder

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1140-101K-RC information

BOURNS 1140-101K-RC technical specifications, attributes, parameters and parts with similar specifications to BOURNS 1140-101K-RC.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Vertical Cylinder

Number of Pins
2

Material - Core
Ferrite

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
1140

Published
2008

Size / Dimension
1.500Dia 38.10mm

Tolerance
±10%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Type
Wirewound

Resistance
25mOhm

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Current Rating (Amps)
10.5A

Shielding
Unshielded

Current Rating
14.4A

Base Part Number
1140

Military Standard
Not

Lead Length
12.7mm

Inductance
100?H

Test Frequency
1kHz

DC Resistance (DCR)
25mOhm Max

Max DC Current
14.4A

Lead/Base Style
Radial

Inductance Frequency - Test
1kHz

Current - Saturation
20.6A

Inductance Tolerance
10%

DC Current
10.5A

RMS Current (Irms)
10.5A

Diameter
38.1mm

Height
26.162mm

Height Seated (Max)
1.030 26.16mm

Length
26.162mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for BOURNS 1140-101K-RC.

Datasheets:

bournsinc-1140150krc-datasheets-5032.pdf

ConflictMineralStatement:

bourns-ptf01152b103b2-conflictmineralstatement-5082.pdf

No product details available
