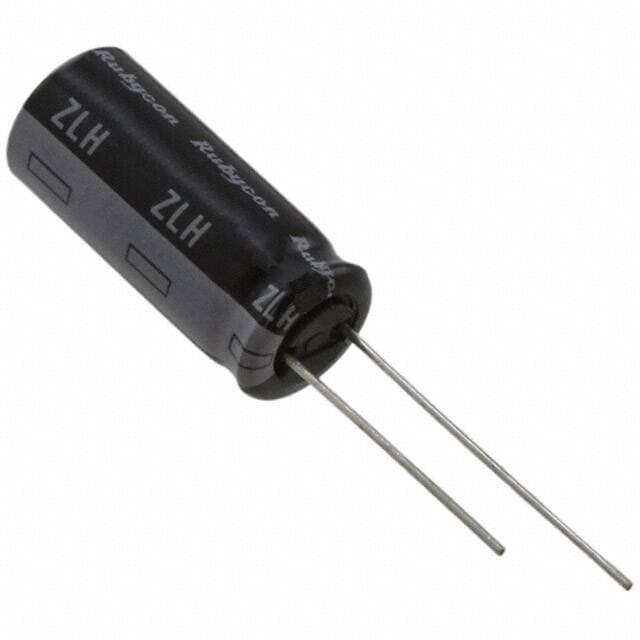

Rubycon 10ZLH2200MEFC10X23

Manufacturer No:

10ZLH2200MEFC10X23

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

ZLH 2200?F Capacitor ±20% Bulk Through Hole 1.575A 0.394Dia 10.00mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10ZLH2200MEFC10X23 information

Rubycon 10ZLH2200MEFC10X23 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 10ZLH2200MEFC10X23.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
ZLH

Published
2012

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

Capacitance
2200?F

Voltage - Rated DC
10V

Terminal Pitch
5mm

Lead Pitch
5.0038mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Leakage Current
0.22mA

Ripple Current
1.575A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
18mOhm

Ripple Current @ Low Frequency
1.575A @ 120Hz

Ripple Current @ High Frequency
2.25A @ 100kHz

Diameter
10mm

Height
23mm

Height Seated (Max)
0.984 25.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 10ZLH2200MEFC10X23.

Datasheets:

rubycon-10zlh2200mefc10x23-datasheets-4681.pdf

10ZLH2200MEFC10X23 Overview

At full charge, the ripple current is 2.25A @ 100kHz.The ripple current is 1.575A @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.984 25.00mm.The capacitor operates at a voltage of 10V - Rated DC.For high efficiency, the operating temperature should be -40°C~105°C.

10ZLH2200MEFC10X23 Features

the ripple current is 2.25A @ 100kHz.
the ripple current is 1.575A @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -40°C~105°C

10ZLH2200MEFC10X23 Applications

There are a lot of Rubycon
10ZLH2200MEFC10X23 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
