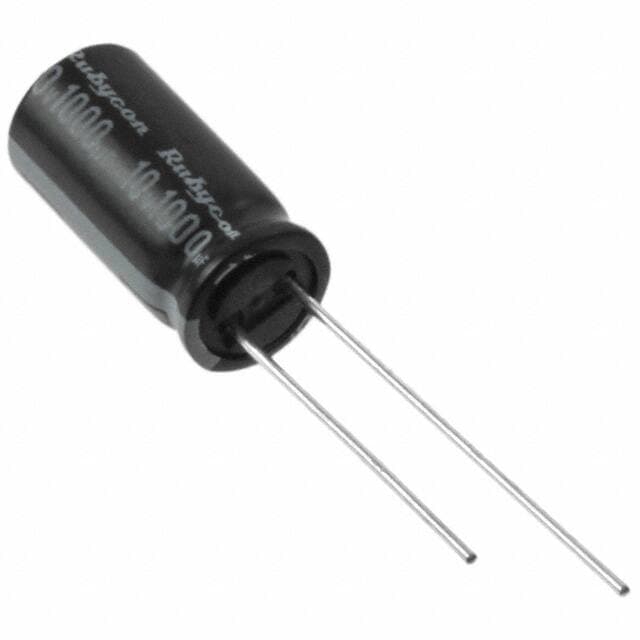

Rubycon 10ZLH1000MEFC8X16

Manufacturer No:

10ZLH1000MEFC8X16

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

ZLH 1000?F Capacitor ±20% Bulk Through Hole 1.25A 0.315Dia 8.00mm -40°C~105°C Polar 3.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10ZLH1000MEFC8X16 information

Rubycon 10ZLH1000MEFC8X16 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 10ZLH1000MEFC8X16.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
ZLH

Published
2002

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Applications
General Purpose

Capacitance
1000?F

Voltage - Rated DC
10V

Voltage - Rated AC
10V

Lead Pitch
3.5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Diameter
600 ?m

Voltage
10V

Lifetime @ Temp
8000 Hrs @ 105°C

Leakage Current
3?A

Ripple Current
1.25A

Polarization
Polar

Life (Hours)
8000 hours

Tan Delta
0.19

Impedance
45mOhm

Ripple Current @ Low Frequency
750mA @ 120Hz

Ripple Current @ High Frequency
1.25A @ 100kHz

Ripple Current (AC)
1.25A

Diameter
8mm

Height
16mm

Height Seated (Max)
0.689 17.50mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 10ZLH1000MEFC8X16.

10ZLH1000MEFC8X16 Overview

With a full charge, the ripple current is 1.25A @ 100kHz.When the charge is at the lowest, the ripple current is 750mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.689 17.50mm.Voltage - Rated DC of 10V controls this capacitor.With a voltage of 10VVAC, this capacitor operates.High efficiency requires the operating temperature to be -40°C~105°C.

10ZLH1000MEFC8X16 Features

the ripple current is 1.25A @ 100kHz.
the ripple current is 750mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -40°C~105°C

10ZLH1000MEFC8X16 Applications

There are a lot of Rubycon
10ZLH1000MEFC8X16 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
