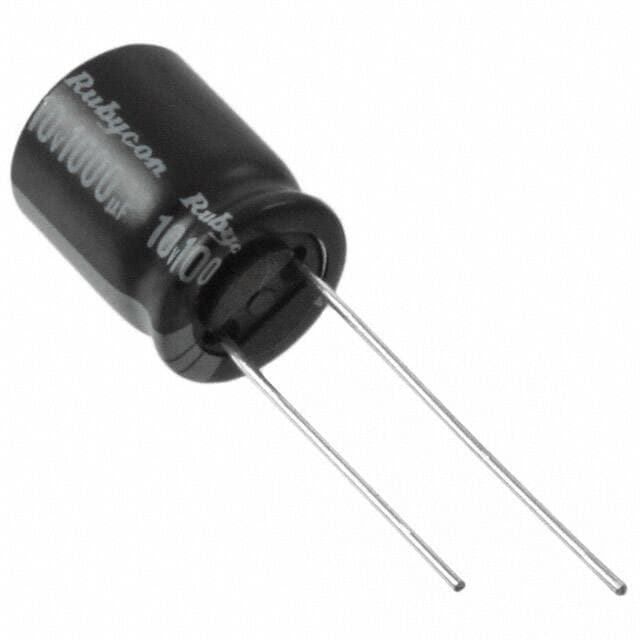

Rubycon 10ZLH1000MEFC10X12.5
Rubycon 10ZLH1000MEFC10X12.5

Rubycon 10ZLH1000MEFC10X12.5

Manufacturer No:

10ZLH1000MEFC10X12.5

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

ZLH 1000?F Capacitor ±20% Bulk Through Hole 1.33A 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10ZLH1000MEFC10X12.5 information

Rubycon 10ZLH1000MEFC10X12.5 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 10ZLH1000MEFC10X12.5.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • ZLH
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Applications
  • General Purpose
  • Capacitance
  • 1000?F
  • Voltage - Rated DC
  • 10V
  • Lead Pitch
  • 5mm
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 10V
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 1.33A
  • Polarization
  • Polar
  • Impedance
  • 39mOhm
  • Ripple Current @ Low Frequency
  • 798mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.33A @ 100kHz
  • Ripple Current (AC)
  • 1.33A
  • Diameter
  • 10mm
  • Height
  • 12.5mm
  • Height Seated (Max)
  • 0.551 14.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Rubycon 10ZLH1000MEFC10X12.5.

Datasheets:

10ZLH1000MEFC10X12.5 Overview


During full charge, the ripple current is 1.33A @ 100kHz.When the battery is charged to its lowest level, the ripple current is 798mA @ 120Hz.You should keep the height of the seat (Max) below 0.551 14.00mm.Rated DC voltage of 10V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

10ZLH1000MEFC10X12.5 Features


the ripple current is 1.33A @ 100kHz.
the ripple current is 798mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -40°C~105°C


10ZLH1000MEFC10X12.5 Applications


There are a lot of Rubycon
10ZLH1000MEFC10X12.5 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
