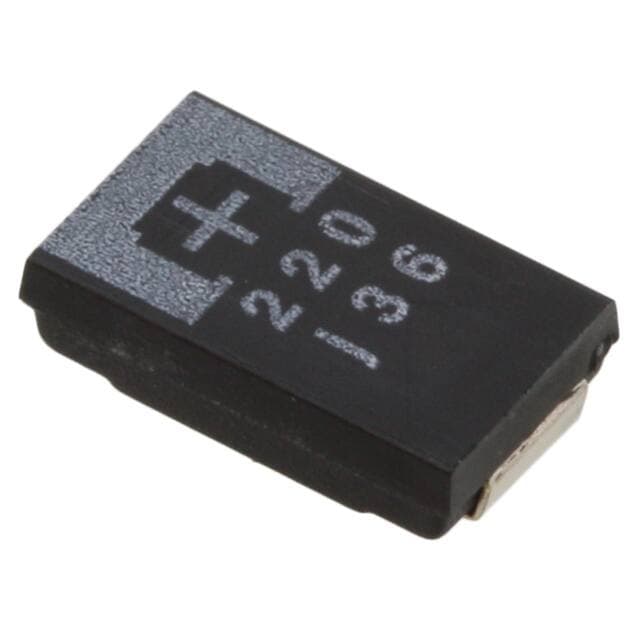

PANASONIC 10TPE68M

Manufacturer No:

10TPE68M

Manufacturer:

PANASONIC

Package:

CHIP

Description:

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10TPE68M information

PANASONIC 10TPE68M technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 10TPE68M.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
PANASONIC CORP

Package Description
CHIP

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Factory Lead Time
22 Weeks, 1 Day

Samacsys Manufacturer
Panasonic

Additional Feature
ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

Capacitance
68 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (SOLID POLYMER)

ESR
25 mΩ

Height
1.8 mm

JESD-609 Code
e4

Leakage Current
0.068 mA

Length
7.3 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
20%

Number of Terminals
2

Operating Temperature-Max
105 °C

Operating Temperature-Min
-55 °C

Package Style
SMT

Packing Method
TR, 13 INCH

Polarity
POLARIZED

Positive Tolerance
20%

Rated (DC) Voltage (URdc)
10 V

Ripple Current
2400 mA

Size Code
2917

Surface Mount
YES

Tan Delta
0.10

Terminal Finish
Palladium/Gold (Pd/Au)

Terminal Shape
J BEND

Width
4.3 mm

Download datasheets and manufacturer documentation for PANASONIC 10TPE68M.

Datasheets:

PANA-S-A0020739049-1.pdf

10TPE68M Overview

It is measured that there is 2.4A ripple current in the part.ESRs (Equivalent Series Resistances) ought to be kept at 25mOhm @ 100kHz for high efficiency.68?A leakage current is supported.This device operates with a capacitance of 68?F.In order to ensure that it is reliable, it operates at a voltage rated DC of 10V.There is a voltage rating of -55°C~105°Cv - Rated AC.In the seated position, it has a maximum height of 0.079 2.00mm°C, so it is stable under all conditions.

10TPE68M Features

2.4A ripple current
a 25mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 68?A
with a capacitance of 68?F
the voltage - rated DC of 10V
an AC voltage of -55°C~105°C

10TPE68M Applications

There are a lot of Panasonic Electronic Components
10TPE68M applications of tantalum polymer capacitors.

Smart phone
Tablets
Notebook
LCD TV
Power supplies
